Managing Complex
and Pathological Wounds
with Integra®


A Gallery of Cases






Marc E. Gottlieb, MD, FACS



Phoenix, Arizona









Arimedica version, 2005.


Limited portions originally published as:

Gottlieb ME.  Management of Complex and pathological Wounds with Integra.  In: Lee BY, ed.  The Wound Management Manual.  New York, McGraw-Hill, 2004: 226-289.  (ISBN 0-07-143203-5).

Arimedica version, expanded, with mostly new content and case studies, 2005.



Copyright © 2004, 2005, Marc E. Gottlieb, MD


Content may be used for non-commercial educational purposes.

Content may not be republished, nor used for commercial purposes without prior license or permission, except as permitted as “fair use” under United States copyright laws.





Marc E. Gottlieb, MD, FACS

Plastic Surgeon, Phoenix, Arizona


Phone:    602-252-3354

Fax:         602-254-7891











Case study A1,  indications and surgical planning

Case study A2,  indications and surgical planning

Case study A3,  indications and surgical planning

Case study A4,  indications and surgical planning

Case study A5,  indications and surgical planning


Case study B1,  acute care and critical coverage

Case study B2,  acute care and critical coverage

Case study B3,  acute care and critical coverage


Case study C1,  reconstruction

Case study C2,  reconstruction

Case study C3,  reconstruction, keloid


Case study D1,  outcome type 1a, nominal reconstruction, healed

Case study D2,  outcome type 1a, nominal reconstruction, healed

Case study D3,  outcome type 1b, healed after ancillary care

Case study D4,  outcome type 1d, healed after second Integra

Case study D5,  outcome type 2a, partial success, healed after secondary flap

Case study D6,  outcome type 2c, persistent open Integra

Case study D7,  outcome type 3c, failure, amputation


Case study E1,  diagnosis, venous

Case study E2,  diagnosis, immunopathic

Case study E3,  diagnosis, immunopathic

Case study E4,  diagnosis, hypercoagulable

Case study E5,  diagnosis, hypercoagulable

Case study E6,  diagnosis, arterial disease

Case study E7,  diagnosis, arterial disease

Case study E8,  diagnosis, arterial disease and diabetes

Case study E9,  diagnosis, diabetes, necrobiosis

Case study E10,  diagnosis, granulomatous

Case study E11,  diagnosis, atypical infection

Case study E12,  diagnosis, mechanical

Case study E13,  diagnosis, metabolic


Case study F1,  location, upper extremity

Case study F2,  location, trunk

Case study F3,  location, leg

Case study F4,  location, foot


Case study G1,  exposed structure, bone

Case study G2,  exposed structure, joint

Case study G3,  exposed structure, hardware

Case study G4,  exposed structure, lung


Case study H1,  select problem, achilles

Case study H2,  select problem, heel

Case study H3,  select problem, stump salvage

Case study H4,  select problem, dorsum of hand


Case study I1,  performance, resistance to recurrence

Case study I2,  performance, tumor

Case study I3,  adjunct use, flap delay and donor site

Case study I4,  technique and management, complete excision

Case study I5,  technique and management, redo Integra

Case study I6,  technique and management, planned second Integra

Case study I7,  technique and management, not using Integra

Case study I8,  technique and management, tissue engineering









Integra and Chronic Wounds, Comparison to Conventional Methods and Surgical Planning


Case studies A1 – A5


Integra does not replace conventional methods of wound surgery.  All methods are important, and reconstructive plastic surgery and wound surgery are, at their core, a doctor’s “black bag” of principles and techniques which are selected and applied based on individual circumstances.  When conventional repair, grafts, and flaps are likely to give the fastest, surest, most dependable, least complicated or disabling way to resolve a problem, that is what should be done.  Since the majority of all surgery is done in people in whom physiological wound repair is intrinsically healthy, conventional methods will always be the most common.  However, Integra is an important new tool in that black bag, because it can simplify care, make it safer, and succeed where conventional modalities fail.  This is especially true in problem wounds where normal wound healing is damaged or inhibited.  The best way to appreciate circumstances in which Integra is superior to conventional surgery for chronic wounds is to look at some case studies.




Case study A1,  indications and surgical planning

73 year old man; embolic foot necrosis; leg salvage with Integra.  The patient had embolization and distal foot necrosis following femoral catheterization for coronary angioplasty.  Amputation through the distal tarsal row removed all necrosis.  This is a functionally good amputation because all major ankle stabilizers, including tibialis anterior and peroneus longus are still inserted.  The dilemma is that there is insufficient skin to close the wound (figure 17a).  If more bone is removed for the sake of skin closure, the tendons will be disinserted, ankle control lost, and a below knee amputation would be warranted.  There are no local flaps to cover the defect.  Skin grafts are contraindicated over the open joints.  The patient has atherosclerotic arteries making a free flap risky.  Most surgeons would have opted below knee amputation.  By placing Integra over the open osteotomies, these problems evaporate.  Integra keeps the wound safe, tolerates arterial insufficiency, heals over bone, and bridges the joints.  Skin grafts were placed at 6 weeks.  They were completely healed and mature several months later. The patient wears a customized shoe and is fully ambulatory (figures 17b-e).  Key points:  Integra works where other surgical options will not; limbs can be salvaged; it is effective for arterial problems; it heals bones and joints; it avoids donor sites and additional complications in high risk wounds and patients.



Figure 17   Case study A1




(a, top left)  Amputation through the distal tarsus.  Cuboid and cuneiform osteotomies and intertarsal joints are open without sufficient skin to close them.

(b, top middle)  Some of the lateral skin could be sutured without tension, and everything else was covered with Integra, shown here stapled in place before fixation dressings.

(c, top right)  The regenerated Integra a few days after placing skin grafts.

(d, bottom left)  The healed result.  Note that the Integra area is smaller than it was originally.  This diminution in size, with corresponding dilation or advancement of adjacent normal skin is an occasional occurrence.  Representing normal accommodation to mechanical load and anatomical geometry, all skin can do this, typically seen in the atrophy of bulky flaps and surgical “dog ears”.  It is different than scar contracture because it remains compliant, not stiff, no tendinous banding, without limitations of motion.

(e, bottom right)  At 5 months, the patient is walking normally in a custom fitted shoe.




Case study A2,  indications and surgical planning

74 year old woman; mixed pathological ulceration into the ankle; closed with Integra.  The patient presented with a 30 year history of recurrent ankle ulcers, old skin grafts, and a nominal history of venous disease.  Figure 18a demonstrates the frequent inflammatory papules and ulcers.  Absence of venous stigmata such as edema, liposclerosis, and pigment changes, pertinent features such as history, distribution, and appearance of the lesions, and her ultimate response to antimetabolic chemotherapy confirm this as an immunopathy.  The patient was already being treated with anticoagulants for a thrombotic history.  Seronegative rheumatoid arthritis, Sweet’s neutrophilic dermatitis, and an antiphospholipid antibody syndrome are the most probable diagnoses.  The lesions as seen were intermittently controlled with various treatments, but during an intense flare-up, all of the old skin grafts lysed.  Ulceration was into the major underlying tendons and into the ankle mortise.  The author treated this by excision and closure with a scapular free flap.  At 9 and 10 days after surgery, gastrointestinal bleeding forced discontinuation of anticoagulants.  The flap promptly began dying from its margins inward (the vascular anastomoses were patent at the time of debridement 4 days later, a characteristic history with hypercoagulable disorders).  The ankle now requires closure.  Further free flaps are contraindicated.  Local flaps are not large enough, and they risk necrosis because of disease.  Skin grafts cannot cover the open tendons and joint.  Amputation would be considered by many surgeons.  Interim biological dressings are suitable, but the closure dilemma cannot be avoided indefinitely.  This was the author’s third Integra case.  Integra was not used in the anticipation that it would work.  It was used as a temporization, a biological dressing to buy time while alternate options were considered.  It healed, and stayed healed through 4 years of follow-up (figure 18b).  It was one of the seminal cases that led to this chapter.  Similar cases would now be managed preemptively with Integra rather than by any other method.  Key points:  closure of essential structures; resistant to underlying pathology; succeeds where other options have failed; durable long lasting result resistant to future ulceration.





Figure 18   Case study A2


(a, top)  A view of the chronic lateral ankle pathology.  Acute and chronic inflammation of decades duration are affecting old skin grafts.  A few months later, intense inflammation lysed all of the skin in this area, leading to the failed free flap and then Integra.


(b, bottom)  Integra was placed over the fibula, the open ankle joint just anterior to the fibula, and the surrounding soft tissues.  The image shown is two years later.  The Integra has been problem free, and inflammation and ulceration no longer affect the area.







Case study A3,  indications and surgical planning

44 year old woman; hypercoagulable disorder and chronic achilles ulceration; healed with Integra.  The patient had a spontaneous achilles tendon rupture.  Tendon repair was followed by multiple complications and necrosis of the tendon.  The ankle was ultimately closed with a rectus abdominis muscle free flap and skin grafts.  The patient presented to the author for consultation because of villous dysplasia of the skin grafts, chronic recurring ulceration, and pain and dysfunction (figure 19a).  The plan was to do serial excisions of excess old flap and advancement of surrounding skin.  The first such procedure caused prompt dehiscence and necrosis of the wound.  These events and a history of retinal artery thrombosis pinpoint a hypercoagulable disorder, confirmed by multiple post-acute elevations of fibrinogen and anticardiolipins.  Any further effort to close and revise this wound has these challenges and requirements: any incision risks more necrosis and complications, a free flap already failed to give a desirable result and more donor sites are unwarranted, more skin grafts will have the same problem of mechanical dystrophy and ulceration, the reconstruction must be mechanically compliant and thin enough to accommodate normal footwear.  Wound debridement and warfarin anticoagulation were followed by Integra.  There were no further adverse events.  A second piece of Integra was placed after the first one regenerated, in order to get a thicker neodermis in this area of significant stress and strain (figure 19b).  The area healed without any of the pathological changes that affected the original skin grafts. (figure 19c).  Key points:  works well for hypercoagulable disorders; prevents pathergy; behaves like normal skin in areas where biomechanical loads adversely influence scars and skin grafts.




(a, left)  Skin grafts over muscle flap over missing achilles tendon.  Villous dysplasia of skin grafts is common in areas of repetitive mechanical strain, and the scar remains juvenile, hyperemic, pathologically active.  There are multiple skin ulcers near the distal end.


Figure 19   Case study A3


(b, center)  Integra in place.  It is fully regenerated and silicone is separating.  It is desirable to place grafts before this happens, but this does happen and is manageable as discussed in the text.

(c, right)  The reconstruction at one year.  In contrast to what had happened with the original ordinary skin grafts, notice how this skin is thin, soft, compliant, with normal texture, that it has even developed the normal transverse dermal creases that occur in this area.




Case study A4,  indications and surgical planning

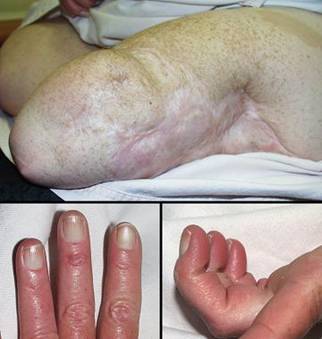

58 year old man; vascular infarction of hand; preservation of length with Integra.  The problem resulted from accidental brachial artery drug injection (figure 20a).  Initial debridement preserved metacarpophalangeal joints and proximal phalangeal bone, intending to use them as grafts under a hypogastric flap that would preserve some length and mobility.  An abdominal pedicle transfer is an inherently difficult reconstruction, made more difficult here because of prior above knee amputation, an obese abdominal panniculus, cardiovascular disease, and depression.  The patient opted out of this flap after 1 week, and all non-viable bone and joint was removed, just below the metacarpal heads.  The margins of skin viability were a centimeter or two proximal to the osteotomies, creating a problem for closure.  One option is to shorten bone, leaving him without metacarpals, but a mobile carpus.  Aside from the general disabilities that this causes, it takes away this patient’s ability to hold a cane, crutch, or walker that he needs because of the ipsilateral thigh amputation.  To preserve length, soft tissues are needed.  A flap from the trunk was already a failed bad idea.  A radial forearm flap is disqualified by the vascular injection injury, and so is a free flap. Skin grafts will either not take on the open bone, or will be prone to recurrent ulceration.  The solution was to create a first web space by wrap-around of a dorsal skin flap over the thumb metacarpal, then closure of all wounds and osteotomies with Integra (figure 20b).  After it was healed, tendon transfers and osteotomies in select areas were able to restore some mobility and pinch (figures 20b, c).  In the author’s practice, Integra would now be opted as primary reconstruction for any such situation, abandoning the radial forearm flap and other traditional options just listed.  Key points:  preserves parts, length, and function; closes bone; works where other options are disqualified; no donor sites needed; no late revisions needed.




(d, bottom right)  In this image at one year, the reconstruction is matured.  Skin is durable.  Tendon and muscle transfers have restored some flexion and pinch at the thumb base.  The skin is healed and trouble free, and the hand is functional for the patient.


Figure 20   Case study A4

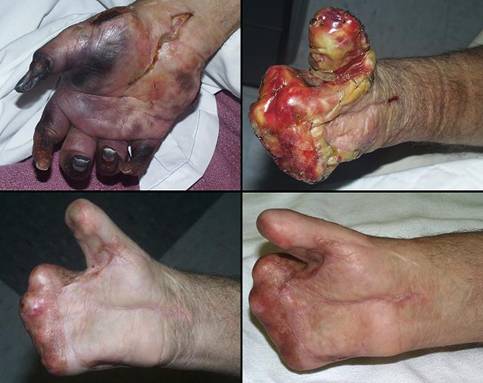

(a, top left)  The infarcted hand, prior to debridements.  Various ischemic areas can be coaxed to survive with good wound care, pharmacological intervention, and patience.

(b, top right)  There is more salvageable hand than might at first be appreciated.  The problem is that there is not enough soft tissue to cover remaining viable bone.  Osteotomies are proximal to the metacarpal heads.  The first web space has been reconstructed with a dorsal skin flap.  Integra covers the bones and parts of the web space, shown at two weeks.

(c, bottom left)  The healed hand.  Some minor injury caused abrasion at the end of the long finger, but that healed quickly.  Thumb carpometacarpal extension is preserved.




Case study A5,  indications and surgical planning

60 year old man; severe arterial disease with heel necrosis; leg salvage with Integra.  The patient has diabetes, end stage renal disease, and severe atherosclerosis.  Left foot ulceration resulted in septic gangrene, necessitating below knee amputation.  While recuperating, he was allowed to get a large heel pressure ulcer.  Toes on the right foot are already missing from previous vascular events.  The patient was sent for consultation after refusing right leg amputation.  The problem is how to close the large heel wound and preserve function.  Severe arterial disease and deficient local resources preclude any type of local or free flap.  Skin grafts are sure to fail over a calcaneal osteotomy accompanied by advanced vasculopathy.  Integra easily solves the problem.  It succeeds without donor sites nor other risk to the patient.  It was managed as an outpatient, and the patient has maintained function and lifestyle (figure 21).  Key points:  same as for case A1.

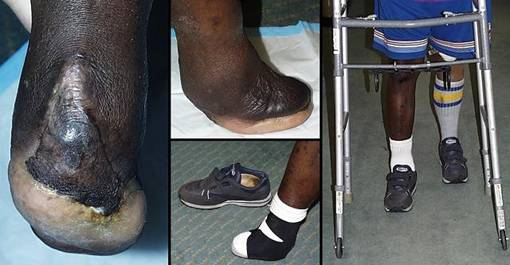

(a, left)  This is face on view of the reconstruction, healed Integra over a large posterior calcanectomy and achilles insertion.



Figure 21   Case study A5


(b, top center)  The patient is in full weight bearing on his healed foot.  The oblique calcanectomy merely followed the contours of skin necrosis;  the toes are missing from previous vascular complications.

(c, bottom center)  For stability, the patient uses a space filling orthotic wrapped around his ankle.

(d, right)  Using his sneaker, his left leg prosthesis, and a walker, he is independent and ambulatory.










The author’s experience with Integra, at the writing of this chapter, is approximately 300 patients, far too many to present individually.  The following examples have not been selected simply because they are “the best”, and many instructive cases with good outcomes and “bragging rights” are not presented.  These cases have been selected exclusively on the basis of (1) being able to illustrate as many as practical of the specific points made in the text, (2) illustrating a wide enough spectrum of situations to permit a comprehensive understanding of when to use Integra, how to, and when not to, and (3) a suitable, even if incomplete, set of photographs exists.  They are however typical and representative of the entire experience with Integra.  The cases are grouped by subject.  Each case is assigned to a particular category to draw attention to specific issues, but all cases overlap into different categories, and key points are listed for each case.   The emphasis is on chronic wounds.  In the D cases, “outcome type” refers to the outcome definitions in the “Review of Experience” section of the original chapter.




Acute Care and Critical Coverage


Case studies B1 – B3




Case study B1,  acute care and critical coverage

7 year old girl, figure 22.  Vehicular trauma caused complex degloving of the lower extremity, multiple skeletal injuries, skin and muscle avulsion, and injury to femoral and popliteal vessels.  The foot was uninjured.  Sciatic and tibial nerves, while neuropraxic, were anticipated to recover.  Multiple staged procedures were required for wound stabilization and ultimate reconstruction.  Instrumental was Integra’s ability to cover muscles, fractures, vessels, and other structures when other resources were limited.  The patient is healed, foot sensate and normal, knee mobile without contractures, posture and ambulation normal.  The only long term management is for femoral length discrepancy due to injury through the distal physis.  Three years after injury, the patient participates in all manner of athletics and recreation without inhibition or significant limitations.  Key points:  protection of underlying structures; good mechanics and esthetics compared to skin grafts; useful where flaps are limited or destroyed; obviate free flaps; salvage limbs that might be amputated by most surgeons.






Figure 22     Case study B1


(a, top)  The original injury, including distal femur fracture, knee injury, and extensive soft tissue trauma.


(b, bottom, left)  A view of the patient a year and a half after injury.  Extensive soft tissue loss means that contours are not normal, but function and lifestyle are.


(c, bottom right)  Close up view of the knee, flexed over the edge of a table.  Integra reconstructed skin, wrapped around the knee, is compliant, having the full extensible range of motion needed for knee flexion.







Case study B2,  acute care and critical coverage

37 year old man, figure 23.  Group A streptococcal fasciitis developed after arthroscopy for a knee injury.  The illustrations show just a fraction of the extensive debridement and drainage.  Streptococcal toxic shock resulted in severe bone marrow depression with severe thrombocytopenia and a white blood cell count of only 200 / mm3.  This, resulted in unrelieved wound derived septic shock in spite of aggressive antimicrobial therapies and liberal use of silver sulfadiazine.  When the wounds were deemed ready for closure, Integra was used.  Within an hour of closure, all pressor drugs could be discontinued, and the patient rapidly recovered.  The patient has never required a follow-up procedure for the sake of correcting scar contractures.  Key points:  ability to immediately close a wound and control bioburden; ability to avoid graft donor sites in a patient who already has a wound greater than normal body surface area; ability to avoid additional trauma in the face of large fluid fluxes and hemodynamic instability; ability to avoid donor sites when anemia and thrombocytopenia create risks; ability to greatly simplify nursing care; good biomechanical results obviate late reconstruction for contractures; ability to save a life.



Figure 23     Case study B2

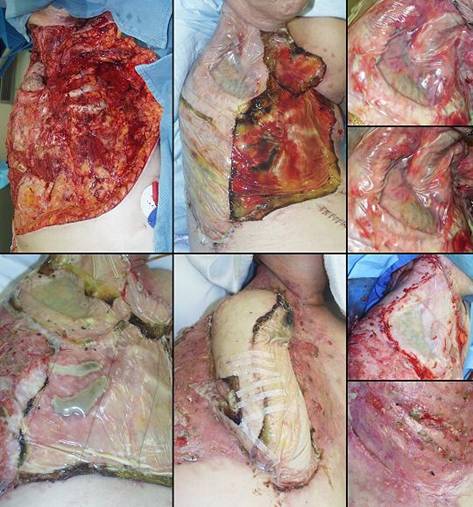

(a, top left; b, top right)  The right flank and thigh are shown several days after debridement of acute streptococcal necrotizing fasciitis.  There are mirror image wounds on the left side, and similar involvement of legs and chest.  These are the wounds just prior to Integra.

(c, middle left)  This is the right thigh just after placement of Integra.

 (d, middle right)  This is the same view six days later. Wrinkles in the material are due to a diminishing wound area as muscle edema resolves.  These “edema reduction wrinkles” are common and of no consequence to usage and outcome.  They do illuminate Integra’s potent ability to control wound conditions, correcting inflammation and its consequences.  This permits rapid physiological recovery of the wound, and it also causes prompt general improvements in critically ill patients, sometimes profound.

(e, bottom left; f, bottom right)  The same views 5 months later.  There are no contractures, and late reconstruction is not needed.




Case study B3,  acute care and critical coverage

32 year old man, figure 24.  The patient has Milroy’s praecox primary lymphedema.  Massive enlargement of lower extremities resulted in a sedentary existence without employment.  Fasciectomy and skin reconstruction was performed, one side and then the other.  This was an elective reconstruction which would have been essentially impossible without Integra.  Integra permitted immediate closure of a very large wound, and avoided skin graft donor sites which would have doubled the wound area.  The conventional approaches to this problem, fasciectomy with skin grafts or fasciectomy with preservation of local skin flaps, are notoriously complicated and have awful results.  By handling the acute coverage and the reconstructive aspects equally well, Integra not only permits this type of reconstruction, but it gets good results.  Lymphedema has not affected the reconstructed skin.  The patient is now gainfully employed.  Key points:  ability to do extensive elective surgery with little risk; absence of donor sites simplifies care; good results for a problem that traditionally has only poor results with surgery.





Figure 24     Case study B3


(a, left top)  The patient’s lymphedematous lower extremities are shown prior to any surgery.  Weight, volume, and dermatitis all contributed to severe disabilities.


(b, left middle)  Four months after skin grafts.  A few small open areas require continuing care near mechanically active areas at the knees.  The patient is able to easily lift his extremity against gravity, something not possible in many years.


 (c, lower)  One year after starting care, the grafts are healed.  Note that the reconstruction has not been affected by edema (diligent compression wrapping has also been maintained).


(d, right)  The patient walks and has a job.







Case studies C1 – C3




Case study C1,  reconstruction

48 year old man, figure 25.  The patient is a garden worker who lacerated his arm in a freshly manured yard, resulting in clostridial myofasciitis (gas gangrene).  Drainage and debridement were followed by a period of topical care until the wounds met criteria for closure.  Customary care for the open wounds of the arm and dorsal forearm would have been split thickness skin grafts, but Integra was used instead to avoid joint contractures and tendon and muscle tethering.  This is a characteristic property of Integra, that applied directly to bare muscle, a shear accommodating areolar plane develops, permitting normal individualized muscle motion without any tethering to the skin.  The patient rapidly regained full active range of motion, without needing any later surgery.  This was preemptive reconstruction, fixing the problem before letting it occur.  Key points:  controls scar; prevents contracted joints; prevents scar tethering to muscles; prevents problems that would require late reconstruction; primary burn or trauma repair with Integra rather than secondary late reconstruction is more efficient and easier on the patients.






Figure 25     Case study C1


(a, top;  b, bottom)  Just a few months after having gas gangrene of the right upper extremity, the patient has recovered normal range of motion, shown here as full elbow extension and full wrist flexion and extension.  Little formal hand therapy was needed.  Integra can be seen on the distal arm at the elbow and on the dorsal forearm.




Case study C2,  reconstruction

11 year old girl, figure 26.  The patient had severe dorsal wrist and elbow contractures from burn scars several years old.  The old scars and skin grafts were excised, range of motion was restored by joint manipulation, and skin was reconstructed with Integra.  The contractures were completely relieved, allowing normal range of motion with completely compliant skin.  Key points:  controls scar; reconstructs contracted joints; even if burn and trauma repair are not initially managed to prevent them, contractures can still be effectively relieved at any future time.




Figure 26     Case study C2

(a, b, c, left side)  Volar (hand to the left), radial, and dorsal views of the patient’s right upper extremity.  Prior to this, the involved areas were severely contracted, with distortion of fingers, wrist, and elbow.  Integra covers the antecubital fossa, a position guaranteed to re-contracture if split thickness skin grafts only had been used.  The regenerated Integra is ready for skin grafts.

(d, e, f, right side)  Four months after Integra , there is no evidence of scar hypertrophy, skin distortion, nor joint contractures.  The patient has 100% total motion of wrist and elbow.




Case study C3,  reconstruction, keloid

61 year old woman, figure 27.  The patient developed typical ear keloids due to piercings.  The patient is somewhat older than usual for the development of keloids, but recent attempts to excise it have resulted  in recurrence.  Excision and closure with Integra resolved the problem.  Key points:  controls scar; effective for keloids, contractures, and scar hypertrophy.





Figure 27     Case study C3

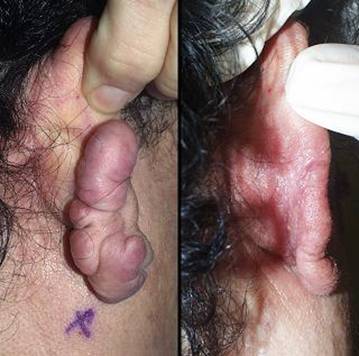

(a, left)  Posterior view of the right ear showing a typical recurrent keloid.


(b, right)  Same view a few months after keloid excision and closure with Integra.  There is not the least evidence of any scar hypertrophy.





Outcome Type


Case studies D1 – D7




Case study D1,  outcome type 1a, nominal reconstruction, healed

51 year old woman, figure 28. The patient is a dialysis dependent diabetic with tertiary hyperparathyroidism.  Multifocal ulceration developed due to systemic calcinosis-calciphylaxis.  She had typical debilitating pain.  The condition is refractory to usual topical and surgical care, with progressive necrosis being common.  All necrotic areas were excised and closed with Integra.  Pain and progressive ulceration immediately ceased.  All areas healed quickly.  This is the paradigm Integra reconstruction, complete success without delays.  Key points: control of pathergy; permits safe debridement and wound closure without progression of necrosis; ability to heal problems usually considered recalcitrant; avoids high risks that would accompany conventional procedures.





Figure 28     Case study D1


(a, left)  This is the histopathology of hyperparathyroid calcinosis and ulceration, medial arteriosclerosis of small blood vessels, some thrombosed.


(b, c, top)  The patient had numerous infarcted lesions on the trunk.  The right breast and right flank (lower abdomen) are shown here.


(d, e, bottom) The healed lesions 3 months after excision and Integra.



Case study D2,  outcome type 1a, nominal reconstruction, healed

70 year old man, figure 29.  This patient had a chronic ankle ulcer due to post-phlebitic venous reflux and hypertension.  Difficulty maintaining a healed wound in spite of good care prompted excision.  Integra was opted for closure because of the mechanical risks across the ankle and at the malleolus.  This was another nominal reconstruction, promptly healed.  Key points:  dependable use for venous problems; succeeds in mechanically active areas; durable result not prone to reulceration.





Figure 29     Case study D2


(a, left top)  This venous lesion has been repetitively healed and reulcerated, and it is now refractory to topical care.

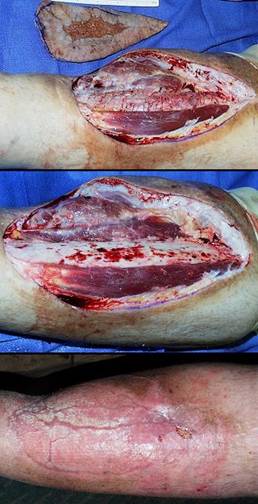

(b, left bottom)  This is the excisional defect.  The ankle joint, malleolus, related ligaments, and motion make skin graft take and durability somewhat uncertain.  Integra was used to ensure a durable result.

(c, right top)  The healed ulcer 7 months after excision.

(d, right bottom)  One year later, the Integra has remained healthy.  This image was taken as acute venous dermatitis caused new ulceration on the medial malleolus, but this old area was unaffected by nearby inflammatory changes.




Case study D3,  outcome type 1b, healed after ancillary care

69 year old woman, figure 30.  The patient had a prosthetic knee arthroplasty for complications of advanced rheumatoid arthritis.  Peculiar ulceration developed near the ankle following surgery.  It failed to improve with topical care and anti-inflammatory therapy.  Laboratory diagnosis revealed Factor V Leiden heterozygous, low proteins C and S, and high homocysteine.  Arterial ankle-brachial index was 0.93, and periwound transcutaneous oxygen pressures were 4 – 50, increasing to 200 – 330 breathing 100% O2.  These studies confirm a hypercoagulable disorder without arterial macrovascular disease.  Warfarin was started.  The wound was excised and reconstructed with Integra  (hyperbaric oxygen might have been a worthwhile adjuvant, but the patient was intolerant of it;  see discussion under “Technique and Management – ancillary therapies” section).  Excision and Integra immediately improved the patient, but complete epithelialization after skin overgrafts was slow.  After 2 months of incomplete progress, platelet derived growth factor was used to accelerate epithelial growth and force closure.  This patient showcases many of the properties and virtues of Integra, as further explained in the figure legend.  Key points:  control of inflammation and pathological wound behavior; coverage of essential structures; succeeds in a high risk patient; elimination of donor site risks; resistant to recurrent disease; complete epithelialization with PDGF; role as an artificial skin; symptomatic relief.





Figure 30     Case study D3


(a, top left)  The original left lateral ankle ulcer.  Note periwound inflammation and lytic necrosis of the margins, typical of rheumatoid panniculitis and hypercoagulable disorders.

(b, top right)  After 6 weeks of general wound care, conditions are slightly better, but inflammation persists and the wound is not healing.  Surgery is therefore indicated.

(c, 2nd left)  The excised wound, with exposed muscles, ligaments, and tendons.  Integra is warranted because skin grafts are unlikely to take, both for reasons of disease and for essential coverage.  The excised wound is enlarged because of extensive calcinosis cutis which had to be removed (visible in background, another pathological factor which would have guaranteed failure of topical care and grafts alone).

(d, 2nd right)  Integra in place.  Note how all vestiges of inflammation have completely disappeared.



(e, 3rd left)  At two months after skin grafting, the original graft has left multiple islands of epidermis, but epithelial growth is retarded.  Platelet derived growth factor was initiated.  Note that even though the entire reconstruction is not yet concluded, that the regenerated Integra has created healthy tissue, that periwound inflammation remains completely controlled, that there is no further necrosis-lysis-ulceration.

(f, 3rd right)  The response to topical cytokine was accelerated epithelial growth.

(g, bottom left)  The wound at 7 months after placing the skin grafts.

(h, bottom right)  The patient had a serious flare of disease 6 months later with multiple new ulcers on both legs.  The original reconstruction was spared.  New Integra can be seen in the background over the contralateral achilles.  The patient died from that rheumatoid flare, but the new Integra still served a purpose, as artificial skin, for high grade control of pain, and obviating the need for regular dressings or other attention to the problem.




Case study D4,  outcome type 1d, healed after second Integra

71 year old woman, figure 31.  The patient had 30 years chronic ulceration of the distal half of the leg due to rheumatoid arthritis.  Fasciectomy and Integra closed nearly the entire leg.  However, a few small areas remained open, and they did not heal after a few months of topical care.  Because Integra was inherently successful, these small areas were covered with new Integra, and the leg was then completely healed.  Key points:  succeeds where all else has failed; use secondary small procedures when needed to complete a successful Integra reconstruction.





Figure 31     Case study D4


(a, b, top)  Close up views of the chronic pathological rheumatoid ulcers that encompassed the entire distal half of the leg.


(c, 2nd row)  After the first set of Integra, nearly the entire leg is healed, but the few open areas shown would not close after several months of topical care.


(d, 3rd row)  Four months after the second Integra, the leg is healed.  Anterior view.


(e, 4th row)  Lateral view.


(f, bottom)  Medial view.  The small second pieces of Integra already look quite mature and normal, but they stand out against the first set of Integra which now is almost indistinguishable from nearby normal skin.




Case study D5,  outcome type 2a, partial success, healed after secondary flap

86 year old woman, figure 32.  The patient had chronic ankle ulceration of several years duration, probably venous.  Anatomical structures were exposed, major tendons and the ankle joint itself.  Excision and Integra healed the wound except for a small area due to shearing from the tibialis posterior tendon.  A small local flap was used to cover this area, completing the reconstruction.  Key points:  closure of complex defects; use secondary small procedures when needed to complete a successful Integra reconstruction; no risk or significant donor sites in a high risk patient.





Figure 32     Case study D5


(a, top)  Integra in place on the medial right ankle after ulcer excision.  Note that this is a large ulcer, and coverage is over ankle joint and multiple tendons and ligaments.


(b, middle)  The wound is nearly healed.  The unepithelialized flat surfaces would have healed by themselves with a few more weeks of topical care, but exposure and shearing of the tibialis posterior tendon requires explicit closure.  Small blue dots demonstrate the length of excursion of the tendon.


(c, bottom)  A small flap from the dorsum of the foot closed the tibialis tendon.  Note how the Integra reconstructed areas are no different than normal skin, soft, compliant, wrinkling and folding in response to ankle motion.  Normal dermal mechanics were already evident in figure b, even before the entire area was healed.




Case study D6,  outcome type 2c, persistent open Integra

75 year old man, figure 33.  The patient has extensive chronic venous disease and ulceration unresponsive to all treatments over many years.  Excision and Integra healed most of the wounds.  However, due to special circumstances, the patient had to plan months in advance for surgery, and then he had to return quickly to his usual work.  He was unable to comply with all details of prescribed care, and some small areas that should have healed have not.  His care has capitulated to a program of long term maintenance for the remaining open areas.  While this cannot be considered an ideal result, to the patient it is quite acceptable. Compared to what he had, these residual wounds are much smaller than before Integra, drainage is less, pain is gone, and he remains functional.  Key points:  effective results even when not fully healed; patients are more accepting of big improvements than their doctors are of less-than-perfect results.





Figure 33     Case study D6


(a, top)  Medial right leg.  Long standing venous hypertension and chronic stasis dermatitis have caused pronounced dermatosclerosis and ulceration.  There are similar ulcers laterally and on the left leg.


(b, middle)  Skin, fascias, and wounds were excised, veins stripped, and skin reconstructed with Integra.  Shortly after skin grafting, the Integra is healthy.  The bare areas where skin grafts did not take completely are otherwise healing properly, and complete reepithelialization is expected.


(c, bottom)  As the reconstruction neared completion, consistent good care could no longer be enforced.  Several small ulcers persist, and even the Integra reconstructed skin has developed venous pigmentation, shown here one year later.  While not fully healed, chronic inflammation, pain, drainage, and other symptoms are well controlled, so the current situation has been an improvement.




Case study D7,  outcome type 3c, failure, amputation

52 year old man, figure 34.  The patient is an insulin dependent diabetic with advanced neuropathy, already black-balled by other physicians as non-compliant.  He was referred for a last chance attempt to salvage a complex plantar wound.  The foot was closed with Integra and local flaps.  Integra intrinsically performed well, in large part because of special compliance enforcing orthotics that kept the patient off of his foot.  As the skin grafts healed, the splints were removed, and without picking up his prescribed custom footwear, the patient promptly took a long motor vacation out of state.  The resulting injury to the reconstruction was managed by below knee amputation.  Key points:  any effective care can be subverted by a non-compliant patient; diabetic plantar neuropathic ulceration is a relative contraindication for Integra.



Figure 34     Case study D7



(a, top left)  The patient has already had posterior calcanectomy.  This image is looking into the subtalar joint.  The rest of the foot shows typical neuropathic and Charcot changes.

(b, top right)  In surgery, the wound has been excised and partially closed by a plantar flap.  Integra will be placed over the wound seen here, including tendons, bone, and common plantar vessels.

(c, bottom left)  Skin grafts have been placed on regenerated Integra.  They are growing to confluence and keratinizing, on their way to a technically good result.

(d, bottom right)  Integra and grafts are healed and healthy in peripheral areas. In the center, denudement of epithelium, callus at the margins, and pressure necrosis in the center all attest to weight bearing and ambulation without wearing proper footwear and orthotics.





Diagnosis and Underlying Disorders


Case studies E1 – E13




Case study E1,  diagnosis, venous

77 year old man, figure 35.  The patient has long standing refractory venous ulceration.  The usual order of management is good topical care and compression, followed by venous interruption, and then excision and skin grafts if needed.  Most venous ulcers will heal within that traditional scope of care.  An obvious reason for using Integra instead of customary one stage skin grafts is to cover essential structures (cases D2 and D5).  Another reason to use Integra is the one that applied here, multiple failed prior skin grafts.  After the usual period of good wound preparation, Integra healing was prompt and uncomplicated, with long term durability of the reconstruction.  Key points:  Integra succeeds when other reasonable care has failed; Integra reconstruction for venous disease is dependable.





Figure 35     Case study E1

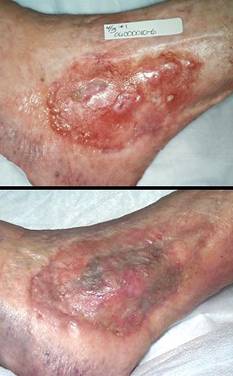

(a, top left)  Venous ulcer of right medial ankle, appearance upon presentation.  There is extensive dermatitis, and a necrotic piece of a recent skin graft is still attached.

(b, bottom left)  After two weeks of basic hygiene, topical steroids, and compression, acute conditions are controlled.  Integra was opted for closure for two reasons.  One was the history of multiple failed grafts.  The other was the anticipation that, after years of inflammation and ulceration, underlying anatomy would be exposed after excision, and that local biomechanics would require better coverage than an ordinary skin graft.


(c, top right)  Excision leaves behind the exposed posterior tibial neurovascular bundle and an open achilles fat space.

(d, bottom right)  In conjunction with continued elastic compression, everything remains healed and healthy at one year.




Case study E2,  diagnosis, immunopathic

77 year old man, figure 36.  This patient with long standing rheumatoid arthritis developed an ankle ulcer.  It did not improve with customary topical care.  Integra was opted because of the failure to respond to care (indicative of persistent soft tissue pathology), and proximity of the ulcer to the ankle and achilles where motion is apt to create problems.  In a healthy patient, skin grafts or dependable local flaps (such as a “reverse sural nerve flap”) would have been the simplest and quickest thing to do, but challenged by active rheumatoid, Integra was the safest thing to do.  Integra healed quickly.  Key points:  low risks in a high risk patient; essential closure of achilles tendon.



Figure 36     Case study E2

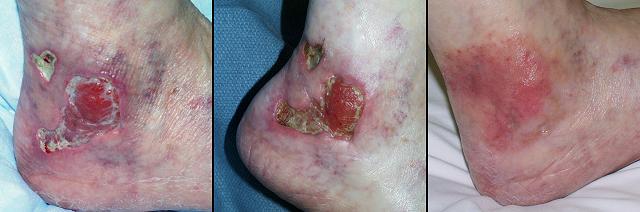

(a, left)  Right posterolateral heel ulceration in a patient with rheumatoid arthritis.  It is a typical rheumatoid lesion, characterized by multifocal lysis of skin and fascias.

(b, middle)  After a month of basic care, including intralesional steroids, the wound is not improved.  There is some control and wound healing in a few areas, but there is also persistent inflammation and marginal necrosis.  Spontaneous improvement is not expected.

(c, right)  Several months after Integra, the area is healed.  In this image, the patient has some contact dermatitis due to continued use of dressing materials even after everything else healed.  This eczematous reaction cleared promptly with some topical steroids.  The Integra reconstructed skin is inherently healthy, looking quite normal at the periphery of the dermatitis, but this demonstrates that Integra skin can also be affected by injury and injudicious care.




Case study E3,  diagnosis, immunopathic

41 year old woman, figure 37.  This patient had characteristic multifocal rheumatoid ulceration along synovium and tendons of both feet and ankles.  Topical care failed, and multiple skin grafts dissolved.  Integra induced immediate and complete cessation of inflammation and ulceration for each and every wound.  Multiple tendons and interphalangeal joints were covered and healed.  However, the first set of skin grafts had only limited take.  After a couple of weeks of hygienic topical care, the healthy open Integra was regrafted.  The patient had a strong family history of early cardiovascular death, and shortly after the second skin graft, she died from thrombosis of her coronary artery stent.  While the final result was not achieved, this case does highlight important aspects of Integra.  Key points:  potent ability to control soft tissue pathology; superior control of immunopathic ulcers; improved quality of life through control of symptoms and simplified care; good performance even when it is bare of an epithelial cover.





Figure 37     Case study E3

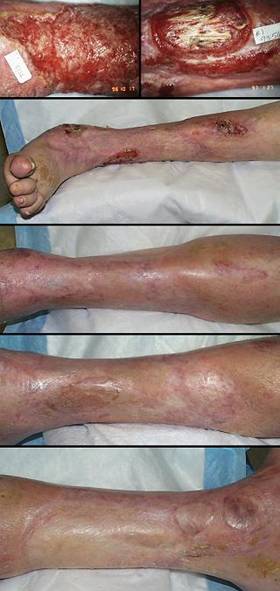

(a, left top)  The medial left ankle.  In spite of some nominal recent care and failed skin grafts, this is an active ulcerating rheumatoid lesion, with lytic dissolution of skin and fascias.


(b, left middle)  The dorsum of the right foot with other necrotic and lytic lesions.  There were many other concurrent ulcers of both feet and ankles, all located over tendon sheaths and joints, a typical lower extremity manifestation of rheumatoid synovitis.


(c, left bottom)  All lesions were excised and closed with Integra, the dorsum of the left foot shown here.  The material is covering extensor tendons and open toe joints.  Inflammation and necrosis in the periwound soft tissues have ceased.


(d, right top)  The initial skin grafts had limited take.  Images d, e, and f are concurrent, at the time of second skin grafting.  They show healthy happy regenerated Integra.  The original wounds, sequestered under the neodermis, are themselves closed and no longer wounds.  Only the Integra itself remains open, behaving as “naked” but otherwise normal dermis.

(e, right middle)  Same as d.  Epithelial ingrowth is evident at margins, and some of the small wounds on the dorsum of the foot have completely reepithelialized.  All pre-Integra inflammation and necrosis are completely gone.  These images demonstrate Integra’s ability to control pathergy, local soft tissue pathology, chaotic wound dynamics, and persistent inflammation and necrosis.  While healed skin grafts are the goal, open regenerated Integra is always healthier than the original wound.

(f, right bottom)  Similar findings on the left foot.  This is now a healthy non-pathological wound.  Integra successfully closed the open tendons and joints.  Although the patient died before the reconstruction was complete, she had several weeks of pain free healthy wounds.




Case study E4,  diagnosis, hypercoagulable

61 year old woman, figure 4.  Hypercoagulable ulceration.  See figure 4 legend for more details. Also notable is that the fibula immediately underneath the ulcer had a large dysplastic osteophyte.  This is because chronic ulceration over bone often causes hyperplastic new bone due to the effects of transforming or pro-proliferative growth factors which are perpetually in the wound.  Tangential tibial ostectomy was done to get smooth wound surfaces, and Integra was applied to the osteotomy.  Key points:  control of periwound inflammation; prevention of pathergy; success when other treatments have failed; ability to close bone.



Figure 4

Case study E4.  This 61 year old woman had leg ulceration and failed care for many years, along with a history of multiple venous thrombosis and pulmonary embolism.  Note that the usual stigmata of venous disease, pigment, edema, dermatosclerosis, are not very severe.  This is a hypercoagulable ulcer rather than a common post-phlebitic venous problem, confirmed by histology (microthrombi;  long standing warfarin therapy precluded making the exact pre-thrombotic diagnosis).

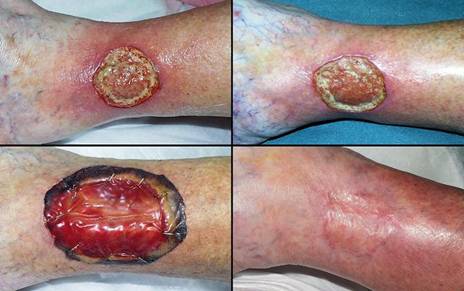

(4a, top left)  The ulcer prior to aggressive consistent topical care.

(4b, top right)  After stricter care and increased warfarin, the wound and periwound are improved, but nevertheless, inflammation and active necrosis-ulceration persist at the margins.

(4c, bottom left)  Six days after wound excision and Integra, periwound inflammation, erythema, and edema, have completely subsided.

(4d, bottom right) Healed.  As the first case cited in the text, this is a good example of a chronic refractory ulcer due to active pathology which failed multiple prior care but healed promptly with Integra.





Case study E5,  diagnosis, hypercoagulable

45 year old woman, figure 38.  The patient was seen in consultation after multiple amputations for multifocal necrosis and ulceration.  Skin infarction and progressive limb loss were active and ongoing, exacerbated with each amputation and debridement.  The patient did not have atherosclerosis.  Laboratory workup showed high homocysteine levels.  Warfarin anticoagulation and hyperbaric oxygen therapy were started.  Thigh and hand wounds were excised and closed with Integra, arresting all further necrosis.  The patient has been healed and problem free for 4 years.  Key points:  control of  pathergy; permits safe debridement and wound closure without progression of necrosis; eminently suited to hypercoagulable ulcers and necrosis; indiscriminate progressive amputation is avoidable with thoughtful diagnosis and effective treatment; saves lives and limbs.





Figure 38     Case study E5


(a, top)  Prior to Integra, the patient was critically ill, with active progressive skin necrosis.  The patient had already had bilateral above knee amputations, and higher amputations and death were threatened.  Necrosis was arrested and the wounds were all healed after proper diagnosis and effective treatments were started (anticoagulants, hyperbaric oxygen, Integra).  In this view, healed Integra is seen on the lateral and posterior thigh.


(b, c, bottom)  Necrosis was multifocal, including some small hand lesions.  Integra is shown here over a finger lesion that ulcerated into the distal interphalangeal joint.  In these two views, the healed lesion is shown at rest and with the long finger flexed, demonstrating good compliance in the graft.




Case study E6,  diagnosis, arterial disease

64 year old man, figure 39.  The patient has aortoiliac atherosclerosis.  Toe necrosis resulted in progressive levels of amputation, each complicated by further necrosis.  The patient was referred when thigh wound necrosis left few other options.  Oxygen tensions in the thigh were very low, but large vessel revascularization was not possible.  The necrosis was excised, covered with Integra, and the patient had adjunct hyperbaric oxygen therapy.  Healed.  Key points:  control of  vascular pathergy; no risk due to incisions or donor sites in a high risk wound or patient;  a good treatment choice when there are no conventional good choices.



Figure 39     Case study E6



(a, left)  This recent thigh amputation has been complicated by skin and fat necrosis.  While many surgeons regard above knee amputations as usually safe, they are not when there is aorto-iliac occlusion.  This is an instructive case study about the challenges of doing wound and soft tissue surgery in the presence of arterial insufficiency, where the principles of good care create their own problems and compete with each other.  One of the surest ways to kill ischemic tissues is to subject them to any kind of tension.  Tension creates pressure which can exceed blood pressure in an underperfused part.  That means that suturing an ischemic wound will kill it, and leaving the wound open and unstressed is therefore preferable.  However, another ischemic flap killer is an open wound.  Regardless that an open wound is safe and healthy and a mandatory necessity of effective care of soft tissue pathology, highly ischemic tissues can be intolerant of exposure.  Desiccation, bioburden, inflammation, and injurious topical medicaments will all cause progressive infarction.  This thigh is the perfect example of this clinical perplexity.  Do an amputation and sew it up, and it dies. Leave it open, and it dies.  Damned if you do, damned if you don’t.  This wound was sutured, and the adjacent tissues died.  Had it been left open, or if the wound is now debrided, it will likewise develop superficial necrosis, comparable to case study F4 (figure 50).  Integra solves this dilemma, because you can debride the wound and then immediately close it without stress or tension on the tissues.  By arresting inflammation, it controls yet another factor which threatens the ischemic wound.

(b, middle)  In this image two weeks after debridement and Integra, the wound is healthy, and there is no necrosis at any of the margins.

(c, right)  Healed after skin grafts.




Case study E7,  diagnosis, arterial disease

67 year old woman, figure 40.  The patient developed foot necrosis due to complications of atherosclerosis.  Arterial revascularization was performed.  The foot was debrided and closed with Integra.  Healed.    Key points:  averts threatened amputation; heals over bones and joints; revascularization (or correction of any underlying disease) should always be done when possible; no donor or incision risks in a high risk extremity.





Figure 40     Case study E7

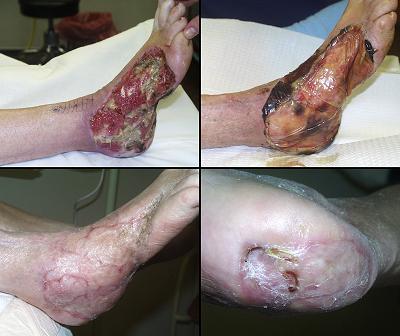

(a, top left)  Extensive arterial necrosis of this foot was managed initially by basic topical are and debridement, along with operative revascularization.  Saphenous vein bypass to the dorsalis pedis artery has been done, and the wound has responded with rapid proliferation of granulation tissue.  Prior to revascularization, the foot and a potential below knee amputation had the same risks and dilemmas as case E6.  After successful revascularization, the issues become much simpler, only a matter of good wound preparation, then essential closure in a locale where no flaps are available.

(b, top right)  The wound was debrided and closed with Integra, shown here 6 weeks after placement and ready for skin grafts.


(c, bottom left)  The healed foot 6 months later.

(d, bottom right)  An inferior view showing the healed reconstruction over the plantar calcaneus and over a posterior calcaneal osteotomy.  The patient uses custom footwear for control of pressure and shear in these areas.




Case study E8,  diagnosis, arterial disease and diabetes

74 year old man, figure 41.  The patient has diabetes and atherosclerosis leading to forefoot amputation.  This case is very similar to case A1, and the same general commentary applies.  The biggest difference is that case A1 was one of the earlier cases in the author’s experience, and using Integra to salvage an open transtarsal amputation was done with some uncertainty about the outcome.  This case was done without a moment’s thought to any option other than Integra.  There should no longer be any need to throw away a perfectly good extremity only for the want of a good flap.  Integra ought to be seen as the preferred option for salvaging complex foot wounds in high risk patients.  Two years later, this patient remains completely ambulatory and active.  Key points:  closes complex wounds with open bone and joints; prevents higher level amputations; preserves quality of life; manageable strictly as an outpatient; very effective for arteriopathic and diabetic patients.



Figure 41     Case study E8



(a, top left)  The open foot after transtarsal amputation.  The cuneiforms and intertarsal joints are exposed and require cover.

(b, top middle)  The amputation closed with Integra.  It is stained red from bleeding at the time of surgery, but this is of no consequence.

(c, bottom left)  The healed foot.

(d, bottom middle)   Lateral view of the foot demonstrating active dorsiflexion through the tibialis anterior tendon, confirming that major tendons remain inserted and active.

(e, right)   Using an insert at the front of a regular shoe, and a thin ankle-foot orthosis for some additional stability, the patient remains very active, leading a normal life.




Case study E9,  diagnosis, diabetes, necrobiosis

53 year old woman, figure 42.  This patient has longstanding diabetes.  Vascular complications have not occurred, but necrobiosis lipoidica of the legs has accompanied the disease since early adulthood.  Persistent painful inflammation and ulceration, unresponsive to any prior therapy, have caused chronic illness and social anxieties.  The problem has been cured by complete excision of diseased and ulcerated fascias followed by Integra reconstruction of the skin.  Malaise and fatigue have resolved due to elimination of chronic inflammation, and she no longer feels compelled to hide her legs.  Key points:  maintains control of local pathology; acceptable esthetic results; succeeds where all else has failed; makes a difference in people’s lives.





Figure 42     Case study E9


(a, top)  Necrobiosis lipoidica diabeticorum.  A view of the right leg prior to surgery.  Chronic inflammation, necrosis, ulceration, and fibrosis are advanced.


(b, middle)  The leg after excision and placement of Integra.  Lesions on the left leg were also excised and covered.


(c, bottom)  Skin grafts were placed at six weeks.  This image is 9 weeks after the grafts.  The last few small open areas are nearly healed, and the patient is otherwise completely healthy.  Note the dermal wrinkling orthogonal to underlying muscle fibers over the anterior and lateral compartments, a sign of maturation and normal mechanical skin compliance (compare this to the thick scar present in the same locations prior to excision and reconstruction).




Case study E10,  diagnosis, granulomatous

55 year old woman, figure 43.  The patient had many years of leg ulceration refractory to care.  Many prior skin grafts failed.  When seen in consultation, diagnostic workup could not identify a particular cause.  Complete wound excision was performed, for debridement and diagnosis, in anticipation of new skin grafts to be placed within a few days.  However, within days of excision, the wound had indurated margins and peculiar proteinaceous plaques indicative of active pathology.  Histology showed granulomatous inflammation, but atypical pathogens could not be recovered.  While Integra was not originally planned, it was now chosen because of its ability to control persistent or chaotic wound pathology.  While not necessarily expected to work, it did, and the healed wound has remained stable for several years.  Key points:  succeeds where all else has failed; controls non-specific or chaotic soft tissue pathology.





Figure 43     Case study E10


(a, top)  The nearly circumferential leg wound is shown days after excision.  Granulation tissue is indicative of an inherently healthy wound repair process.  However, note the waxy white plaques, persistent edema at the ankle, and the thickened wound margins at the inferior edge.  These findings are indicative of some type of active unresolved pathology.


(b, middle)  Integra in place, fully regenerated and ready for skin grafts.  There is neither edema nor any other sign of inflammation or disease.


(c, bottom)  In this view, there is a small area posteriorly which is a little red and immature.  This is where the skin overgrafts did not take and required some extra topical care.  However, there is no evidence of active disease.  At 8 months, everything is healed, the first time in many years, free of inflammation and ulceration.




Case study E11,  diagnosis, atypical infection

58 year old woman, figure 44.  With a long history of rheumatoid arthritis and treatment, this patient developed progressive leg ulceration and critical illness.  Aspergillus was diagnosed histologically.  Complete fasciectomy and Integra closure was performed (amputation also would have been appropriate but was refused).  The patient rapidly stabilized, with improvements in general metabolic, hemodynamic, and ventilatory parameters.  However, she then developed complete renal failure from (encapsulated) amphotericin B.  The family also refused dialysis, and the patient died from uremia.  The acute physiological corrections were comparable to cases B2 and H4.  Had the patient survived, the anatomical outcomes would have been comparable to cases D4, F3, and G1.  While there are no final pictures to show, this case illustrates how Integra can be used in the management of atypical infections.  The principles are the same as for any mycotic or mycobacterial abscess: total excision and antimicrobial drugs, and then wound closure.  Integra should be used for large anatomically complex wounds and for fragile patients.  Key points:  rapid stabilization of wounds and general physiology; no donor sites nor additional operative risk in an unstable patient.





Figure 44     Case study E11


(a, top)  The left leg, with aspergillus fasciitis.


(b, middle)  The debrided leg.  As with many conditions portrayed in these case studies, this disease affects skin and subcutaneous fascias, but spares the “working parts”, neurovascular and musculoskeletal structures.  Absent arterial insufficiency, these are all manageable problems.  Extremities need not be amputated simply because skin is missing.


(c, bottom)  One week later, the Integra is in place and healthy.  Note the wrinkles in the material, due to reduction of leg volume and surface area as inflammation and edema subside, reflecting the physiological improvements that occur when Integra closes a wound.




Case study E12,  diagnosis, mechanical

79 year old woman, figure 45.  The patient has a chronic ankle ulcer of many years duration, unresponsive to any prior treatment.  Workup failed to reveal any diagnosis other than chronic pseudarthrosis at an old malleolar fracture directly underlying the ulcer.  Excision of the ulcer, bone fragments, and arthrosis was closed with Integra.  The significance of tissue mechanics and their influence on mesenchymal differentiation and repair is overlooked by most physicians.  The cardinal signs of pseudarthrosis are inflammation and pain, and in a susceptible elderly person, it can create enough local pathology to maintain an active ulcer.  Healed.  Key points:  control of chaotic wound dynamics; effective over bone and joint.



Figure 45     Case study E12



(a, left)  This right lateral malleolar ulcer has been present several years, refractory to all prior care.  Note the intense eczematoid dermatitis surrounding the ulcer.  A malleolar fragment and pseudarthrosis are underneath.

(b, middle)  The wound was excised, and Integra has been placed over bone and joint and ligaments.  Note that inflammation has completely subsided.

(c, right)  The healed wound.




Case study E13,  diagnosis, metabolic

46 year old woman, figure 46.  The patient has pannicular calcinosis (calcifying panniculitis).  Calcium is precipitated extensively throughout subcutaneous fascias.  Involvement in this case is circumferentially around the pelvis, over both hips, and down both thighs laterally to the knees, with patchy calcinosis of other thigh surfaces.  This is a characteristic but advanced distribution of an uncommon disorder.  Like all calcium dystrophies, this problem can be a primary diagnosis in an otherwise healthy patient, or it can be associated with a variety of disorders.  In this case the patient has dermatomyositis, and chronic cutaneous and pannicular inflammation may have been etiological.  Her disease is now controlled by methotrexate, and she is free of other acute illness.  The calcium tumor over the left hip became ulcerated and abscessed, a problem which has no solution other than excision.  Dense confluent rock hard calcinosis means that excision is all-or-none.  Note that this is not a case of Integra-or-nothing.  Conventional skin grafts would have been a perfectly suitable alternative, but the advantages of Integra are two.  First, it simplifies care, by closing the wound immediately, avoiding secondary wounds created by skin graft donor sites, and thereby controlling drainage, pain, and short term disability.  Second, long term results are apt to be better.  In this case, just as in case B3, extensive resection of skin and fascias was done electively, without donor sites.  All care was outpatient.  Contractures have not occurred, and no type of late revision will be needed.  At one year, there is no disease in the reconstructed hip and thigh.  Key points:  permits aggressive elective resection and reconstruction; keeps complex care manageable as an outpatient; obviates need for late reconstruction; resistance to disease; results in happy healed patients.



Figure 46     Case study E13



(a, left)  The left hip and thigh at the time of resection.  Hyperpigmented areas along the thigh and lumbar indicate the location of calcinosis.  Over the hip, numerous sinuses are draining the abscess within the calcium tumor.

(b, center)  One year after excision and Integra, the area is healed.  There has been no recurrence of pathology.  The patient’s general welfare is greatly improved by elimination of chronic infection.  This photograph was taken just prior to the same procedure on the right side.  Calcinosis is equally extensive on the right, but because it is not yet abscessed, there has been no urgency to operate.  The fact that the patient returns to have the other side operated is a testimonial to patients’ acceptance of these procedures: good results, control of disease, and a return to healthy lifestyle, with acceptable post-operative discomfort and little risk or time away from home.

(c, right top)  These two pictures illustrate some options for graft fixation.  In this image, the right side has been excised and closed, as an outpatient, 4 days prior.  The pelvis is a challenging area to use wrap-on bandages, so the Integra was compressed and immobilized with a “tie-over” type of dressing using an elastic bandage zigzagged and stapled over bulk cotton gauze.

(d, right bottom)  The stapled dressings are very effective compression, but they can be untidy and uncomfortable.  They were used of necessity in the operating room, but 4 days later in outpatient clinic, they were replaced with a sponge vacuum device (V.A.C.®, Vacuum Assisted Closure ™, Kinetic Concepts, Inc., San Antonio, Texas, USA).  This is an effective way of getting good graft compression and adherence to the wound, with comfort and relative simplicity.  Vacuum fixation is particularly suitable for patients with vascular disease where it can eliminate bandage-induced pressure ulcers.





Location and Anatomical Area


Case studies F1 – F4




Case study F1,  location, upper extremity

42 year old woman, figure 47.  The patient has diabetic atherosclerosis involving the upper extremities.  Long finger ulceration resulted in progressive necrosis and amputation.  At the time of consultation, there was  abscess and necrosis of the central hand.  Debridement and silver sulfadiazine stabilized the wound, permitting the third ray defect to heal by natural contraction.  However, exposed joints and flexor tendons required coverage to avoid ring finger amputation.  Vascular disease and loss of the adjacent finger precluded any of the customary flaps that ordinarily solve this problem.  Integra over the exposed structures of the ring finger succeeded, followed by a small flap to close residual open ligaments of the interphalangeal joint.  Key points:  low risk in a high risk situation; suitable when customary options do not exist; simplicity, low risk, and good results make it a preferable choice even if customary options are available; effective for vascular problems; essential closure of important structures.





Figure 47     Case study F1

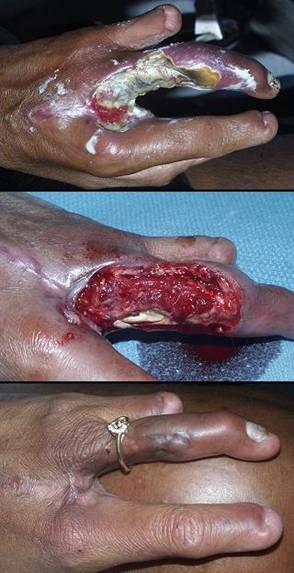

(a, top)  This left hand presented with active progressive infarction and abscess beginning in the long finger ray.  This image is after a few weeks of good wound hygiene, silver sulfadiazine, and debridement.  Arterial pressure and circulation are not as bad as first thought, evidenced by the completely healed central hand.  Since initiating good topical care, gross inflammation (erythema, edema, and so on) are controlled, and there has been no further necrosis.  The hand is healing, but essential coverage issues over the skeletal structures of the ring finger need a solution.  The usual flaps from adjacent fingers cannot be done in this high risk arteriopathic hand.


(b, middle)  The prepared wound ready for Integra.  Crucial structures to be covered are the web space, the proximal interphalangeal joint, and the flexor tendons and their sheath.


(c, bottom)  The healed hand.  The interphalangeal joint had a persistent small ulcer after Integra, and this was closed with a small flap from the dorsum of the joint.  Integra closed the flexor tendons, and it reconstructed a fully compliant web space free of scar and contracture.  Interphalangeal joint motion is limited, but the patient eschewed therapy and is very happy to have a healed hand without having lost the ring finger.






Case study F2,  location, trunk

49 year old man, figure 48.  This paraplegic patient had chronic lumbar ulceration due to vertebral osteomyelitis and extensive bone abscess at the site of his original lumbar injury and surgery.  Complete three level vertebrectomy, L2 - L3 - L4, was required to cure the problem.  Repair had to satisfy closure of remaining bone, dura, and spinal cord, protection of intraabdominal vascular structures just anterior, and sufficient mechanical stability to prevent subsidiary ulceration or excessive disability.  The most crucial structures were closed with available flaps of lumbar muscles, fascias, and skin.  Integra was a complement to the flaps, closing all other open surfaces, providing essential coverage and simplifying post operative care.  The patient has been healed and functional for two years, using a spinal orthosis for stability in his wheelchair.  Key points:  simplifies care in an unusual situation; works well in combination with flaps, each contributing what it does best for the reconstruction.





Figure 48     Case study F2

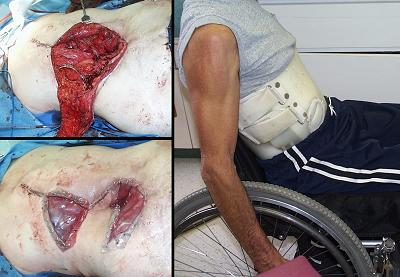

(a, left top)  A view from caudad to cephalad showing the lumbar area after 3 level total vertebrectomy.  Available skin and paraspinal muscles have been elevated or transposed to close key structures.


(b, left bottom)  The wound closed with flaps and Integra.


(c, right)  The patient is healed and independent, seen here a year and a half later.  By wearing a TLSO (thoraco-lumbo-sacral orthosis), the patient is stable and mobile for transfers and wheelchair activities.




Case study F3,  location, leg

77 year old woman, figure 49.  The patient had bilateral leg and ankle ulceration for 40 years.  In spite of classic symptoms of Sjögren’s disease, the diagnosis was missed countless times.  When seen in consultation, the diagnosis was made, anti-inflammatory and antimetabolic treatments were started, and the patient’s general health status improved considerably.  Fasciectomy and Integra reconstruction healed the legs.  Key points:  succeeds where all else has failed; succeeds when patients and providers think the situation is hopeless; especially helpful for treating extensive ulceration due to connective tissue disorders.





Figure 49

Case study F3


(a, left top and middle)

The patient has extensive bilateral “rheumatoid” ulceration of 40 years duration due to Sjögren’s disease.  (There are three sets of images, before-during-after.  There are 4 views for each time.  The image order is matched, beginning from the top: medial right leg and ankle, lateral left, medial left, lateral right.)



(b, center top and middle)  The legs and ankles one week after excision and Integra.  The material covers multiple muscles, tendons, and retinacular ligaments.  Notice the wrinkling in the Integra, a common occurrence because inflammation is controlled and all edema is gone, decreasing the circumference of the extremity.

(c, right column)  The healed legs two years later.  An anterior view is also shown.

(d, bottom row)  Close up views of the medial and lateral right ankle, to show the quality and texture of the regenerated skin.



Case study F4,  location, foot

73 year old man, figure 50.  The patient required transmetatarsal amputation for atherosclerotic necrosis of the toes.  The open incision, well cared for, was not an immediate threat to the patient, but it would not heal, and slow progressive necrosis continued on the wound surface.  Hyperbaric oxygen therapy was offered but refused because the patient lives and works at a far distance.  The wound was excised and closed with Integra, and the patient continued his normal activities.  Integra stabilized the wound.  It remained healthy after silicone removal (unlike the open wound’s behavior prior to Integra).  Slow epithelialization was accelerated with platelet derived growth factor.  Healed.  Key points:  control of pathergy; succeeds where most surgeons would have done a leg amputation; good topical wound care, hygiene, and patience give much better results than amputations due to impatience; PDGF is a useful adjunct; function, lifestyle, and vocational productivity can be preserved, even during reconstruction; all outpatient care.





Figure 50    Case study F4

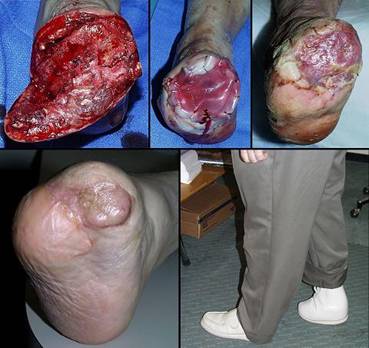

(a, top left)  The left foot many weeks after transmetatarsal amputation.  The wound is rigorously cared for, and it has remained free of inflammation and complications.  However, the foot remains severely ischemic, and there is the perpetual accumulation of superficial necrosis in spite of regular debridement.

(b, top right)  Closure with Integra arrests necrosis.  The foot is fully motored and functional.

(c, bottom left)  Open Integra, two months after regeneration and silicone removal.  Skin grafts did not adhere, and the wound is not epithelializing.  However, although epidermis is not moving, the regenerated Integra is acting like “naked dermis”, healthy, protecting the wound, preventing necrosis.  In the interest of stimulating epithelial growth, platelet derived growth factor is now being used topically.

(d, bottom right)  Healed and ambulatory 3 months later.





Exposed Structures


Case studies G1 – G4




Case study G1,  exposed structure, bone

33 year old man, figure 51.  The patient has had multiple venous thrombosis and leg ulceration ever since a femur fracture at age 14 (while not worked up for such, laboratory evaluation of recent similar patients has demonstrated that young men with a comparable history almost uniformly have Factor V Leiden or similar pre-thrombotic disorder).  Under the author’s care, a large ulcer healed, but in spite of continuing compression and preventive care, it recurred a year or two later, and surgery was opted.  All inflamed, ulcerated, and trophic skin was excised.  The tibia, highly dysplastic due to chronic contiguous inflammation, was planed down to remaining normal cortex, and the wound was closed with Integra.  The wound has been healed and stable nearly 5 years.  Key points:  durable reconstruction that outlasts other approaches to care; closes bone; no donor sites nor other risks as would be the case with free flaps; outpatient care.





Figure 51     Case study G1


(a, top)  The right leg in surgery.  Pathological tissues have been excised.  Dysplastic tibial cortex is exposed.


(b, middle)  After planing the tibia back to architecturally normal bone, the wound is ready for closure with Integra.


(c, bottom)  At 5 months, the reconstruction is almost completely healed (it has since healed and has remained stable for 5 years).





Case study G2,  exposed structure, joint

43 year old man, figure 52.  An internationally ranked athlete, this patient rapidly deteriorated due to scleroderma.  He presented with multiple hand problems, including ulceration into the index finger metacarpophalangeal joint.  As one of the few fingers not contracted and still otherwise functional, salvage was important for the most rudimentary activities of daily living.  Any incisional surgery was risky because of immunopathy and related vascular problems.  Even if surgery was safe, sclerotic skin made local flaps a technical impossibility.  Integra healed the open bone and joint, with preservation of a functioning finger.  Key points:  works where anything else is too risky; no further incisions or risk; coverage of bone and joint.





Figure 52

Case study G2


(a, top left)  The right hand in surgery.  The open index finger metacarpophalangeal joint and degenerated bone at the base of the phalanx have been debrided.  Various contracture releases have been performed on other fingers.  Note skin atrophy, sclerosis, and telangiectasias typical of scleroderma.



(b, top right)  Histology of the debrided specimen shows stenotic fibrotic arteries typical of immunopathic angiopathy.  Impaired circulation adds another layer of risk and complexity to this case.  Of the conventional options for closure, topical care, repair, flaps, grafts, or amputation, all are either too risky, doomed to fail, technically unfeasible, or too destructive of remaining function.  There are no rational solutions to close this wound, nothing safe, nothing which will get a favorable result, other than Integra.

(c, bottom left)  The healed hand at 6 months.  This is the posture at rest.  The healed Integra over the joint, soft and compliant, has dermal creases.

(d, bottom right)  The material is compliant enough to allow full flexion.  Due to extensive fibrosis, failed prior operations, and lack of systematic care, the hand prior to consultation was useless.  After this Integra reconstruction and related activities, socioeconomic factors hampered his ability to have aggressive hand therapy and follow-up reconstruction.  While this result is only as good as circumstances permitted, it has healed the hand and restored basic activities of daily living.  Daily care is no longer needed, pain and symptoms and threat to the limb are gone, and he can now hold a pencil, telephone, cup, and toothbrush.




Case study G3,  exposed structure, hardware

50 year old woman, figure 53.  The patient had a distal tibia fracture treated by plate and screw fixation.  Skin dehiscence was managed by rectus abdominis and latissimus free flaps, both of which died.  When seen in consultation, the first jobs were to stop all other surgery, clean up the wound, and work her up for autoimmune and hematological disorders (a diagnosis was not established).  Options for surgical closure of an open distal tibia are already quite limited, and in this case, all choices, local flaps and free flaps, carried substantial risk of further failure.  Rather than take these risks, Integra was opted.  Its intended use was to be a high grade artificial skin.  Whenever silicone would threaten to come off, new Integra would be placed, and this would continue until the fracture was healed and the exposed plate could be removed, probably 3 or 4 months.  It was not meant to completely close the wound over the plate, but because of tangential histoconduction, that is what happened.  After the third piece of Integra, a complete competent lamina of new tissue covering the plate could be skin grafted.  There were no complications nor setbacks of any kind.  The patient became quite skilled with the required care, permitting her to take an out-of-country holiday vacation for three weeks while the third Integra was in place.  It has remained healed for two years, the hardware uncomplicated and still in place.  Key points:  controls pathergy; safe; not susceptible to the pathological failures that normal repairs, flaps, and grafts are subject to; solves problems when other options have run out; tangential histoconduction; essential closure; role as a high quality artificial skin; multiple serial Integra is a good strategy, to be used for artificial skin purposes or for reconstruction; outpatient care.





Figure 53     Case study G3


(a, left top)  The right distal tibia after two failed free flaps.  Note the multifocal infarction of skin edges, all suspicious for vascular, hematological, or immunopathic disorders, even though an underlying diagnosis was not established.  The tibialis anterior tendon, the metal plate and screws, and the fracture underneath are all exposed and need a solution for coverage and salvage.  After a period of hygienic wound care, Integra was used to close this wound, according to the rationale discussed in the text.

(b, left middle)  After a few weeks, Integra has fully opacified over those surrounding soft tissues that could directly source regenerative cells into the matrix.  Integra sponge over plate and tendon has not yet regenerated.  Filled with yellow serum, the plate can still be seen through it.  Because silicone ejection was imminent, the original silicone has been peeled off in surgery.  Skin grafts will be placed on peripheral regenerated areas, and new Integra will be placed over the central zone.


   (c, left bottom)  In this and image b, look closely at the margins of the central sponge.  In many areas, opacified new tissue is diffusing inward from the surrounding normal areas.  This centripetal growth will continue until the entire matrix has generated tissue.

(d, right top)  While tangential histogenesis alone was not the original surgical plan, it became obvious early in the process that it was going to work.  After the third Integra (and skin grafts), the leg is healed.  The leg is seen here 11 months after starting the reconstruction, entirely healthy and uncomplicated (anterior view, foot to the left).

(e, right middle)  The patient is fully ambulatory and active, with no restrictions of activity of any kind.  The fracture is healed, and the plate and screws remain in place.  Ankle dorsiflexion is off by 20 degrees, but this can be a consequence of fracture, and it is better than having the whole foot off.

(f, right bottom)  Demonstrating plantar flexion, which is normal.




Case study G4,  exposed structure, lung

50 year old woman, figure 54.  Advanced breast cancer caused abscess and necrosis of the upper extremity, with brachial plexus and chest wall infiltration.  Radiation necrosis and ulceration of the sternum further complicated the problem.  No distant metastasis could be identified, and the patient was recommended for interscapulothoracic amputation to relieve intolerable symptoms.  Most forequarter amputations have normal thoracic skin that allows primary wound closure.  The operation in this patient was undertaken knowing that if the resection was to be effective palliation, justifying the procedure at all, that all nearby skin, parts of the musculoskeletal chest wall, and all usual flaps would be gone.  Without Integra there was no coverage, and surgery simply could not have been done and would not have been scheduled.  Excising the chest wall without any flaps meant that Integra was used to cover open thorax and lung.  The patient died 10 months later.  Patient and family reported that the experience was worthwhile because pain and other symptoms were almost completely relieved, and travel and family activities were possible for a few months.  The Integra was an effective skin and a competent chest wall, developing an alveolar fistula only in the last few days of life.  Integra was also placed over known micrometastases, without visible growth of the tumor in those areas.  Key points:  effective over well debrided irradiated areas; role in palliative care; support of meaningful lifestyle; effective for chest wall and abdominal reconstruction; sometimes the only possible option; makes extreme surgery feasible and relatively easy; no donor sites when they can be ill afforded; a good companion to flaps (see figure legend); possible tumor control?





Figure 54

Case study G4


(a, top left)  The chest, abdomen, and neck after wide resection and interscapulothoracic amputation for widely infiltrated breast cancer.  The first rib and apical chest wall have been removed, and the lung is exposed. The anterior chest and sternum are areas of radiation exposure and superficial ulceration.  Posteriorly, the extent of resection is comparable, crossing the midline.  The rectus abdominis muscle is the only potential flap that might be used, but its viability is uncertain when transposed to the base of the neck.  There are no options for closure other than Integra.  Other than 10 days associated with this first operation, the care was outpatient.


(b, top middle)  Two weeks after surgery, Integra was healthy except anteriorly over the irradiated areas. A second procedure was done, anterior debridement and new Integra, and also delay of a rectus flap. Integra was serving as a very effective chest wall substitute, but there was uncertainty about leaving it as the only long term coverage over the lung.  So, preparation of the rectus muscle was started so that it would be safe to pull up this far.  In this image 2 weeks later (4 weeks after the first operation), the original Integra is fully regenerated.  The new 2 week Integra is healthy (except for the characteristic black color over two dead ribs).  The delay incisions are visible on the upper abdomen.

(c, bottom left)  Three weeks later, skin grafts are healing posterior and lateral.  The new anterior Integra is healing properly.  Degenerative exudates surround the two dead ribs, but this does not influence the rest of the reconstruction.  Regenerated Integra is still in place over the lung.

(d, bottom middle)  It is now 3 months after the first operation.  Skin grafts are healing across the entire chest.  The flap has been transposed and covers the lung.  A piece of Integra has been placed on the bare undersurface of the flap, to keep it healthy and to obviate the need for any specific care.  This piece of Integra is regenerated, still under silicone, an innocuous neodermis that obviates any direct care.

(e, right top)  These two images are at two weeks.  The lung is visible under the Integra which is just beginning to opacify.  This first image shows the lung in inspiration.  There is the expected paradoxical inversion of the material, but the lung stays suspended and inflated, obviously without pneumothorax or effusion.

(f, right 2nd)  The companion image, during positive pressure valsalva.

(g, right 3rd)  During the various procedures, the original Integra over the lung was replaced with a second Integra when the first piece was ready to lose it silicone.  This image is at the time when the second silicone was removed and the lung was covered with the rectus flap.  The lung is still visible through the thin but regenerated Integra, and it remains fully inflated, even with the silicone peeled off.  When the patient later started chemotherapy, fat necrosis developed at the distal end of the flap, exposing the Integra.  Fortunately, the Integra neodermis remained a competent chest wall for another 6 months.

(h, right bottom)  Several months later, cutaneous tumor metastases are beginning to grow, visible in the lower left of this image.  At the time of initial surgery, histology had confirmed microscopic disease across the chest wall, now under Integra.  If it was going to grow, one might expect it to be obvious through the thin Integra, just as ordinary skin grafts in this situation rapidly become ulcerated by tumor growth.  However, except for a limited number of small nodules, the Integra was not host to tumor growth, at least not obvious exophytic growths nor malignant ulceration.  In this image, there are a few open areas of still healing skin graft, and a few nodules near the normal skin, but little other sign of neoplastic tumor growth.





Special Problems


Case studies H1 – H4




Case study H1,  select problem, achilles

65 year old woman, figure 55.  The patient has Wegener’s granulomatosis with severe pulmonary disease and an achilles ulcer.  After a period of preparational wound care and treatment of disease, the ulcer and tendon were closed with Integra.  The reconstruction healed promptly.  Key points:  essential closure; eliminates flaps in high risk wounds; safety in high risk patients, excellent results over the achilles tendon.





Figure 55     Case study H1


(a, top)  A view of the ulcerated achilles tendon.  There are multiple scars from previous immunopathic or vasculitic ulcers.  Granulation tissue around the tendon indicates that wound healing is intrinsically competent.  However, disease is still active, and shearing from achilles tendon motion means that this wound cannot easily heal, if at all, even in a healthy person.


(b, 2nd)  In surgery, the wound has been prepared by excisional debridement, including decortication of tendon until only healthy fibers remain.  Serious consideration was given to using a “reverse sural nerve flap” (the design marked in blue ink), a usually dependable flap for wounds in this area.  However, skin grafts would have been needed at the donor site, so the flap would not really have simplified the situation.  Given the high risks for this wound and patient, good sense prevailed, and the simplest safest thing was done, Integra.


(c, 3rd)  The regenerated material ready for skin grafts.


(d, bottom)  The healed result two months later.




Case study H2,  select problem, heel

84 year old woman, figure 56.  The patient developed multiple foot ulcers related to diabetic vascular disease and disabling senile illnesses.  Living in a rural area with an elderly husband, foot preservation was required so that she could stand and assist with wheelchair transfers.  All ulcers were debrided and closed with Integra, including a large heel ulcer requiring posterior calcanectomy.  Reconstruction was uncomplicated, and all wounds healed.  Key points:  effective closure of heel; effective closure of bone; salvage of limbs and preservation of lifestyle without risk.





Figure 56     Case study H2


(a, top)  The right foot is seen after debridement and Integra reconstruction of multiple wounds, including the achilles tendon and the heel which are visible in this view.  The extent of posterior calcanectomy can be seen from the missing heel contour.


(b, middle)  A close up view of the heel showing stable skin.


(c, bottom)  The same view, but with the foot in forced passive dorsiflexion.  The contours of the achilles tendon insertion on the calcaneal margin are seen in relief as the thin, compliant, scarless new skin moves and conforms to activity underneath.




Case study H3,  select problem, stump salvage

53 year old man, figure 57.  The patient had a below knee amputation for complications of diabetic atherosclerosis.  Although wound necrosis threatened above knee amputation, it was managed by debridement, good wound care, and then reclosure with Integra.  The stump healed, permitting the patient to be rehabilitated with a preserved knee.  Key points:  salvages complicated stumps; prevents progressive amputation; effective in diabetic atherosclerotic patients; recently healed Integra can be injured and lacerated by accidental trauma (see figure legend).





Figure 57     Case study H3


(a, top left)  This left leg has stump necrosis after below knee amputation.  Note the granulation tissue.  This wound is sufficiently vascularized, and it is competent to heal.  Necrosis was a consequence of avoidable technical factors.  With patience, good wound care, and suitable surgery, this should be easy to heal, without higher amputation as had been suggested to the patient.  (In all of these images, the tibial tubercle is at  the top of the image, the knee superior to that by a few centimeters.)

(b, top right)  After a period of debridement and good daily care, the wound now meets criteria for reclosure.  Note the exposed necrotic tibial surface which will need excision.

(c, middle left)  The prepared wound ready for closure, including decorticated anterior tibia.  There are no dependable options, no available flaps, no realistic choices for closure other than Integra.

(d, middle right)  Integra in place 5 weeks later, nearing complete regeneration and ready for skin grafts.

(e, bottom left)  The healed reconstruction two months later.  A few subsidiary wounds around the knee are also healing (not treated with Integra).  Throughout the reconstruction, a rigid posterior platform splint was used to maintain an extended knee yet permit care of the wounds and the reconstruction.  Knee posture is now normal, and the patient and leg are preparing for prosthetic training.


 (f, bottom right)  One month later, the patient fell.  This caused a tangential avulsion laceration of newly healed epidermis.  This was treated like any similar laceration without difficulty.  This image is included to demonstrate that Integra reconstructed skin, like any wound or scar or skin graft, needs suitable time to fully mature and develop sufficient strength to bear up to the requirements of daily life.  Appropriate caution and care should be taken for several months after reconstruction.




Case study H4,  select problem, dorsum of hand

44 year old man, figure 58.  The patient developed staphylococcal necrotizing fasciitis after leg surgery.  Extensive involvement of lower extremities, trunk, and upper extremities required usual aggressive debridement followed by wound care and then closure and reconstruction.  Integra was used to close many areas, including leg amputation, knee joint, shoulder joint, and many tendons and muscles.  The case is presented to demonstrate the type of dorsal hand wound which is easily reconstructed with Integra.  This is also an example of Integra as a biological dressing, as a bulk filler, and as a planned second use of Integra (see figure legend).  All wounds and structures closed with Integra have remained healed and uncomplicated for 4 years.  Key points:  high grade artificial skin; good tool for managing critically ill patients with large wounds; a superior dorsal hand reconstruction compared to other methods; the spongy matrix alone can be used for volume filling; Integra should be a first choice for the dorsal hand and wrist.



Figure 58     Case study H4



(a, top left)  A view of the left upper extremity after staphylococcal necrotizing fasciitis.  Multiple other areas of the body were similarly involved.  After a week of debridement and initial care, the patient is now back in the operating room ready to start closing wounds.  Note the drain passing through the glenohumeral joint.  The shoulder was not ready for closure and was kept open for another week of care.

(b, top middle)  This image is one week later.  All wounds closed by Integra or simple direct repair have contributed to a healthier more stable patient with fewer nursing requirements.  The shoulder itself is now clean and ready for closure.

(c, top right)  The Integra over brachial muscles, seen in image b, has been pulled off.  It served a function as high quality interim closure, but now it has been removed for the sake of an integrated repair of the entire shoulder area.  A small flap of axillary skin was available for transposition, so it was used.  As good as Integra does for preserving normal skin mechanics, flaps are still better in many areas.  In an area like the axilla, notorious for scar contracture, the opportunity to do a simple composite reconstruction with a handy flap should not be missed.  Except for the final overgrafts, these wounds healed without further ado.

(d, middle left)  However, in some areas, Integra is superior to conventional flaps, and the dorsum of the hand is one of those areas.  In this image, the open dorsal hand and its tendons have been covered with Integra.

(e, center)  This and the next image show the hand a year and a half later, at rest and in flexion.

(f, middle right)  The dorsal hand Integra is thin, compliant, and extensible.  Dermal creases are present.  There are no restrictions on range of motion.  Tendons and joints glide independently of the new skin.  The results are comparable to full thickness skin grafts:  good texture and mechanics; no need for late revision.  The differences are important:  Integra is more apt to take completely than the grafts;  the supply of full thickness grafts is limited, but Integra is unlimited;  losing some full thickness graft is a waste that cannot necessarily be restored, but losing some Integra, while unlikely, can easily be replaced with more Integra.  Integra ought to be seen as the preferred option for reconstructing skin on the dorsum of the hand.

(g, bottom left)  The bottom row illustrates Integra for volume filling.  The patient’s fasciitis began in the leg after below knee amputation.  The stump wound is now ready for closure, but the defect extends into the tibial medulla.  Soft tissue is required to fill this (or risk abscess if it is covered without filling).  However, there are no good options for local flaps.

(h, bottom middle)  Integra sponge was packed into the endosteal cavity and deeper soft tissues, and then a normal bilaminate piece was used to cover the entire wound.  The Integra will be replaced with tissue, and in the short term, it is a reservoir of antibiotics that will resist any tendency to get a dead space abscess.  Its use is comparable to antibiotic-laden acrylic cement, which is usually used for bone filling.  However, the Integra matrix will simply become part of the host and will not require exchange.

(i, bottom right)  The silicone remained in place without complication until the wound was regenerated.  The skin grafts healed and the stump has remained uncomplicated for 4 years.





Performance, Adjunct Usage, Technique


Case studies I1 – I8




Case study I1,  performance, resistance to recurrence

71 year old woman, figure 59.  The patient was treated for “venous ulcer” for several years, even though the ulcer had paradigm features of rheumatoid disease and the patient met multiple other diagnostic criteria.  On consultation, the diagnosis was made and anti-immune treatment was started.  The ulcer, including open fibula, was closed with Integra.  Two years later, disease flare-up caused multiple new ulcers on both legs and ankles.  The original reconstruction was spared new injury.  The new lesions were closed with Integra after preliminary management showed that they were not likely to heal by topical care alone.  Key points:  accurate diagnosis important; treatment of underlying disease important; essential closure of muscles, tendons, bone; durable results resistant to disease flare-up.




(g, bottom left)   Medial view.  Because the new ulcers and fascial necrosis did not improve by anti-rheumatoid control and topical care alone, they were excised and closed with Integra, shown here one week after placement.

(h, bottom right)  Medial view.  All healed, seen here 9 months later.


Figure 59     Case study I1


(a, top left)  The original ulcer on the lateral left leg and ankle.  Multifocal lytic ulceration, exposure but sparing of muscles and tendons, distribution along tendon sheaths, and absence of venous pigment and edema all peg this as a rheumatoid ulcer (or related immunopathy).

(b, top right)  Integra in place after excisional debridement and initiation of anti-inflammatory and antimetabolic therapy.

(c, 2nd left)  The healed ankle 6 months later. This area has remained healed ever since.

(d, 2nd right)  Two years later, the patient became very ill with a disease flare-up.  Rheumatoid dermatofasciitis and multifocal ulceration occurred, seen here on the medial side of the left leg.

(e, 3rd left)  Anterior view.  After 3 weeks of increased anti-inflammatory therapy and care of the leg, some inflammation has subsided, some persists, and there are numerous small ulcers.

(f, 3rd right)  This image is simultaneous to figure e.  Whatever else has happened nearby, the original lateral leg reconstruction remains healthy.  This is because Integra does not restore the adipose fascias in which rheumatoid panniculitis typically occurs, but also possibly because, as a more embryonic type of tissue, it might have some inherent resistance to these diseases.




Case study I2,  performance, tumor

22 year old woman, figure 60.  The patient has juvenile nodular fibromatosis and Gardener’s syndrome.  Multiple previous tumors and surgery had created areas of unstable scar and skin graft on the right flank, all of which lysed and ulcerated when she developed an acute nephric abscess.  The area was closed with Integra and it remained healed, another successful Integra result, another example of visceral coverage (kidney and colon).  However, one year later, mesenteric tumor growth and a persistent calyceal fistula necessitated block resection of abdominal wall, kidney, and bowel.  The old Integra came out with the kidney.  This case is presented because the histology of the specimen suggests that Integra might be a barrier to the growth of invasive tumor.  Key points:  visceral coverage; possible tumor control?





Figure 60     Case study I2


(a, top)  The patient’s back and right flank prior to tumor resection (hip to the right, chest to the left).  The large mass protruding anteriorly is a large thoraco-abdominal and mesenteric fibrous tumor which is to be removed.  In the center is one-year old Integra.  The two lobules to which the Integra conforms are kidney and tumor.  The Integra is inherently healthy, not invaded by tumor.  The calyceal-nephrostomy fistula is at the medial margin (6 o’clock position in the photograph).


(b, center)  Wide microscopic view of part of the specimen.  The top pink zone is healthy Integra, covered by mature epidermis and papillary dermis.  At the left margin is some conventional scar (see figure 16).  At left bottom is kidney.  The right and center bottom is tumor, juvenile nodular fibromatosis.  While not a true sarcoma, this neoplastic process is invasive and recurrent.  The blue-grey tumor is separated from kidney by some normal pink collagenous fascia.


(c, middle left)  These two panels zoom in on tumor margin along the perinephric fascia.  There is diffuse infiltration of tumor into the fascia.


(d, middle right)  These two panels zoom in on margins of the tumor adjacent to Integra. The tumor does not appear to transgress or invade the Integra.


(e, bottom left)  A close up of the fascia margin shows organized columns of tumor infiltrating into normal tissue.


(f, bottom right)  A close up of the Integra margin.  A few tumor cells seem to be flirting with the idea of crossing the line, but there is no organization between these cells, and no bulk transgression.




Case study I3,  adjunct use, flap delay and donor site

14 year old boy, figure 61.  The patient had a back ulcer of several years duration following radiation for a spinal tumor.  Closure was done using a large lumbar (non-irradiated) flap.  The flap required several delays and intermediate transfers.  Integra was an adjunct to care.  It was not used as the primary closure, but instead, it was used to close flap donor sites and to line the undersurface of the flap during delay.  This is an important concept in staged flaps.  The idea of delay is to develop robust circulation in the flap through a small inflow pedicle.  A flap is typically raised and then put back in place, waiting until later procedures to be moved.  If an already dissected undersurface is allowed to heal and reconnect, that completely abrogates the delay.  In this case, effective delay made for a safe flap, and when the flap was moved, the underlying Integra was ready for overgrafts.  All components of the reconstruction healed without complication, and the problem was easily managed as an outpatient with little pain and no disability.  Key points:  works well in conjunction with flaps; excellent companion to large staged and pedicled flaps; simplifies post-operative pain, nursing, and recuperation.





Figure 61     Case study I3


(a, top left)  The lumbar area is a watershed between large vascularized muscles, and the choice of large dependable one stage flaps is limited.  Closure of the right paraspinal radiation ulcer is to be done with a random flap transposed in stages from the non-irradiated left lumbar area.  This image shows the flap elevated and moved into place over the excised ulcer.  Scar and dystrophic skin inferior to the flap is part of the radiation injury, and this is to be excised and closed with  the back end of the flap after the forward part of the flap heals.

(b, top right)  Integra has been used over exposed muscles at the flap donor site.  This was done, rather than skin grafts, to minimize pain, drainage, and nursing requirements.  Part of any good flap delay is to keep the elevated pedicle from healing and revascularizing on its deep surface.  Integra can also be seen buried underneath the flap to prevent this.


(c, middle left)  Images a and b were photographed from the right side (head to the right).  Images c, d, e, and f are from the left side (head to the left).  Fourteen days later, a delay was done.  Because the flap is healing and revascularizing at its distal end, the base has been divided so as to force more robust vascularization at the front end.  This will permit the back half of the flap to be elevated and moved in another few weeks.  The Integra has normal two-week appearance, still a transparent window on underlying structures, but just starting to opacify from histogenesis.  The buried Integra cannot be seen, but this is the moment of its most important function, because if the flap were able to revascularize on its deep surface, it would not develop enough circulation at the distal end to support the entire thing.

(d, middle right)  Three weeks later, the delayed flap is healthy, uncomplicated, and ready for transposition.  The Integra is fully regenerated and ready for skin grafts.

(e, bottom left)  Taken at the same time as image d, this is the back end of the flap, elevated and ready to move.  The underlying Integra is healthy, and it has done its job, keeping the flap unconnected in that area, easy and bloodless to elevate, without creating new vascular stresses on the flap.  The tail of the flap was moved across the midline to replace the remaining dystrophic irradiated skin.  Skin grafts were placed over both pieces of regenerated Integra.

(f, bottom right)  A year later, everything is healed.  The flap is healthy, Integra regenerated skin is soft and compliant, and there has been no skin dystrophy nor ulceration.




Case study I4,  technique and management, complete excision.

60 year old woman, figure 62.  The patient had a persistent leg ulcer refractory to various care.  Progressive lytic ulceration with spotty pigmentation suggested a venous, vasculitic, or other immunopathic disorder (but an exact diagnosis was not established).  This profile prompted excision and Integra, and the ulcer healed.  The case is presented to illustrate the method of ulcer excision and Integra placement.  Key points:  proper technique; good wound preparation; complete ulcer excision; proper graft fixation; continued care of the healed result; relatively resistant to disease, but not impervious to injury and neglected care (see figure legend).





Figure 62     Case study I4


(a, top left)  The right leg ulcer.  Spotty brown pigment suggests venous insufficiency or hypertension.  However, the ulcer itself has features more typical of immunopathies and hematopathologies rather than ordinary venous stasis ulceration.  Various topical treatments and compression failed.  Anticipating that skin grafts would not take, and that flaps might be subject to complications or impaired healing, excision and Integra was elected.  While disease is still active, as evidenced by a retarded wound module and signs of active necrosis and ulceration at the margins, nevertheless, this wound has been properly prepared for surgery.  Periwound erythema is mostly gone, there is little or no edema, and the only residue on the surface is from silver sulfadiazine cream.


(b, top right)  The excised wound.  All of the original wound surface must be removed.  Note that the deep plane of resection incorporates the deep or muscular fascia (the “sural fascia” here on the leg).  Since musculoskeletal and visceral structures are not usually affected by these disorders, excision of susceptible tissues must be done until these structures are revealed.  This is a mandatory treatment principle, and it explains why so many Integra cases have essential coverage issues, and why Integra is so suitable for their closure.  (Note that the specimen remains attached by the superficial peroneal nerve.  This nerve perforates the sural fascia and terminates in its target territory in this position.  Almost all chronic wounds in this position are tethered by this nerve, explaining why most anterolateral ulcers are predictably painful.)

(c, middle left)  Integra has been placed on the wound and secured (staples in this case, but choice of method is irrelevant).  Excess material at the margins is then trimmed.  In spite of its collagen content and microporous surface area, recall from figure 5 that Integra is not thrombogenic nor hemostatic.  Wound bleeding should be controlled before the material goes on.

(d, middle right)  Post-operative care is minimum or none, because the reconstruction is protected under fixation or compression bandages.  They are usually changed once a week, but more often or less often depending on circumstances.  In this case, this is the first dressing change at 10 days.  The Integra is healthy and normal looking for this interval, without yet any histogenetic opacification.

(e, bottom left)  Six weeks later, the material is regenerated and ready for skin grafts.

(f, bottom right)  The skin grafts did heal, but four months later, the patient developed some superficial ulceration of the new epidermis.  This resulted from inconsistent use of prescribed compression garments and skin care.  Basic topical care and good compression corrected the problem, and the wound quickly rehealed, shown here as epithelium has once again grown to confluence.




Case study I5,  technique and management, redo Integra

90 year old woman, figure 63.  The patient developed heel and achilles pressure ulcers while recuperating from a femur fracture.  Operative debridement and closure with Integra was performed, including posterior calcanectomy for the large heel defect.  It became obvious, from black discoloration of the Integra sponge, that there was still dead calcaneal bone that was not fully excised.  The Integra was left in place as a temporary artificial skin.  During the second procedure, skin grafts were placed over the regenerated achilles, and new Integra was placed on the heel after further ostectomy.  Final skin grafts were placed a month later.  The wounds healed, and the patient continued with rehabilitation.  The results have remained stable for 2 years.  Key points:  effective simple closure of heel and achilles; effective artificial skin; sequential use of Integra in select circumstances; necessity of thorough excisional debridement prior to placement.





Figure 63     Case study I5


(a, top)  Integra was placed on a calcaneal ostectomy and over the achilles tendon.  The first piece of heel Integra turned black due to incompletely excised bone necrosis (the black color is characteristic of Integra over non-viable tissues, such as in image b where it overlaps normal keratinized skin, or in figure 54b). During the second procedure, skin grafts were placed where ready, on the achilles, and a progressive calcaneal ostectomy was covered with new Integra.  In this view a week later, achilles skin grafts and the new heel Integra are healthy

(b, 2nd)  Three weeks later, the second heel Integra is regenerating properly.


(c, 3rd)  Five months later, all is healed and healthy.


(d, bottom)  The following year, the reconstruction continues to be healthy, without any injury or ulceration due to footwear, walking, nor other normal activities.




Case study I6,  technique and management, planned second Integra

69 year old woman, figure 64.  The patient had necrosis and ulceration of the leg following excision of a small benign skin lesion.. It failed to heal with customary care, and slow necrosis and ulceration continued.  Foot pulses were good, and laboratory studies showed protein C deficiency and the presence of cryoglobulins.  Warfarin was started, but anticoagulation and topical care alone still did not induce wound module healing.  Conventional skin grafts and local flaps are contraindicated because they will have the same complications that caused the ulcer in the first place.  Excision and closure with Integra controlled the wound and permitted healing.  However, by the time that the first piece of Integra was regenerated and ready to loose its silicone, the flexor digitorum longus tendon was not yet covered.  A second piece of Integra was applied over the entire reconstruction, and skin grafts could be placed after that.  Key points:  control of pathergy; ability to bridge structures; multiple sequential Integra buys time and allows the reconstruction to completely regenerate.





Figure 64     Case study I6


(a, top left)  Right medial leg ulcer.  Active necrosis and ulceration at the margins are still active, even with good topical care, edema control, and anticoagulation.

(b, top right)  In this histologic section, the ulcer surface is at the top left corner.  Inflammatory exudates are sparse, due to good hygienic care and the fact that the cause of this was not an inflammatory disorder.  Subjacent blood vessels have stasis and thrombosis, and the vessels themselves are necrotic, typical of microthrombotic disorders.

(c, middle left)  Integra in place.  There has been no further necrosis nor ulceration.  The flexor digitorum longus tendon is visible underneath.


(d, middle right)  The silicone has been removed showing that the Integra has regenerated everywhere except over the flexor digitorum tendon.  This is not a failure, but merely a need to apply a second serial piece of Integra.

(e, bottom left)  After the second piece regenerated, skin grafts were applied.  Three months later, all is healed, and the double barrel contours of the tibialis posterior muscle and the flexor digitorum tendon are easily seen.

(f, bottom right)  Two years after that, the reconstruction remains healthy.




Case study I7,  technique and management, not using Integra

77 year old man, figure 65.  One case is selected to illustrate when not to use Integra.  This patient with long standing rheumatoid arthritis had an ankle ulcer over the medial malleolus.  Malleolar ulcers generally do not heal without surgery because of local mechanics, shearing due to foot motion, and wound geometry related to the malleolar bursa.  This patient’s history sounds in principle like many of the other cases presented.  However, there are important differences.  His rheumatoid arthritis is not very active, and he is not ill.  The ulcer is due to minor impact trauma in the presence of weakened senile skin, but there has been no dermatitis nor ulcerative inflammation.  Although one might anticipate atherosclerosis due to his age, he in fact has normal pulses.  This is a simple mechanical ulcer.  Risk factors for failed surgery or impaired healing are more speculative than real.  The ulcer and malleolar bursa were excised then closed with conventional flaps and grafts, concluded in one operation.  Integra would have worked well, but it would have unnecessarily prolonged the care and required a second operation.  The flap also gives a superior result, being more tolerant of future trauma (see case H3).    Key points:  choose the best option to get the best result efficiently and with minimum morbidity.



Figure 65     Case study I7



(a, left)  Medial right ankle with malleolar ulcer.  The skin defect is deceptive, because there is a bursa underneath.  The malleolar bursa is normal anatomy.  The bursa is there to accommodate motion of skin over bone, and it extends another centimeter or two in most directions.  Once the skin perforates into the bursa, the mechanics of the mesenchyme dictate that this cannot heal.  A trial of topical care is always appropriate (as was done), but it will quickly confirm that this lesion requires surgery.

(b, middle)  The lesion has been excised.  A small local flap was transposed from the anterior ankle to close the bare debrided malleolus.  A full thickness skin graft taken from near the knee closed the flap donor site.  A customary “tie-over” dressing holds the graft in place.

(c, right)  The reconstruction is healed.  The thick flap over the malleolus provides protection against future accidental injury.




Case study I8,  technique and management, tissue engineering

82 year old woman, figure 66.  The patient had a skin cancer of the scalp treated by radiation, 6500 cGy, resulting in a chronic ulcerated parietal cranium.  Compounding the problem was advanced Paget’s disease of bone with atrophic immobile skin making scalp flaps impossible.  The calvarial wound was vascularized and viable, just not wound healing competent.  Restoration of competent tissue with trapezius flaps or free flaps would have succeeded, but having had several failed operations, she refused any more major surgery.  She did agree to minor outpatient procedures.  The solution was to use Integra as a carrier of healthy cells.  The reconstruction started by placing a small fenestrated plastic chamber under abdominal skin.  Two weeks later, proliferative tissue within the chamber has removed.  It was mashed, partly trypsinized, and filtered.  The resulting paste was worked into a piece of Integra which was applied to the debrided scalp wound.  The composite implant remained alive, the matrix serving as an incubator of mitosis-competent cells.  There was a bloom of multifocal regenerative loci distinct from normal Integra regeneration patterns, indicating that the Integra was healing by the seeded cells.  When the first piece regenerated, a second unseeded layer of Integra was placed to build a thicker lamina of new tissue.  Subsequent skin grafts healed transiently, until dystrophic pagetoid bone continued to extrude, causing reulceration.  The patient has since adopted a program of chronic maintenance care and she remains healthy.    Key points:  Integra can be used in situ as a reactor or incubator to engineer a new tissue with impregnated cells not derived from the substrate wound.





Figure 66     Case study I8


(a, top left)  This is the radiation ulcer of the scalp, just after debridement, prior to placing Integra.  The Integra was impregnated with a paste of wound activated cells harvested from a donor wound.

(b, top right)  The matrix at 2 weeks.  Some small unmacerated yellow fat lobules are present from the original seeding.  Scattered through the matrix, especially center, right, and top, are multiple blooms of pink regenerative tissue.

(c, middle left)  The matrix 4 weeks later, fully regenerated, just prior to peeling the silicone and placing another layer of Integra.

(d, middle right)   The second piece of Integra completely regenerated and ready for skin grafts.

(e, bottom left)  The skin grafts appear normal at 2 weeks.

(f, bottom right)  Five months later, pagetoid bone is starting to extrude through the reconstruction, but most of the reconstructed skin is still present.  The matrix presumably was populated in part by cells derived from the wound, blood borne or locally resident, but the images suggest that it was mainly the cell transplants which generated the neodermis.













END      END      END



Managing Complex and Pathological Wounds with Integra®


A Gallery of Cases




Marc E. Gottlieb, MD, FACS


Phoenix, Arizona
